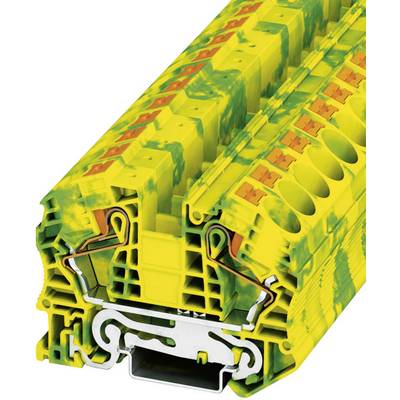

Phoenix Contact 3212147 Triple port PG terminal 12.2 mm Quick-connect Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Triple port PG terminal
Connection
Quick-connect
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
25 mm²
Nominal current - rounded value
76 A
Datasheet (PDF)
61 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€
Technical specifications
- Product type
Triple port PG terminal
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
25 mm²
- AWG (min.)
20
- AWG max.
4
- Clamp width
12.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Stripping length (max.)
18 mm
- Manufacturer part #
3212147
- Content
1 pc(s)
- Industrial packaging
No
- Type
PT 16 N-PE
- Dim
(L x W x H) 75.4 x 12.2 x 52.6 mm
- Width
12.2 mm
- Height
52.6 mm
- Length
75.4 mm
- Weight
0.04
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 556373 Phoenix Contact 3212147 Triple port PG terminal 12.2 mm Quick-connect Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 556373 Phoenix Contact 3212147 Triple port PG terminal 12.2 mm Quick-connect Green, Yellow 1 pc(s)
Description
The Push-In terminals PIT fits for the direct tool-free wiring of conductors with wire end ferrule or fixed conductors. With the help of actuating button, any type of contact points can be opened by screw driver
