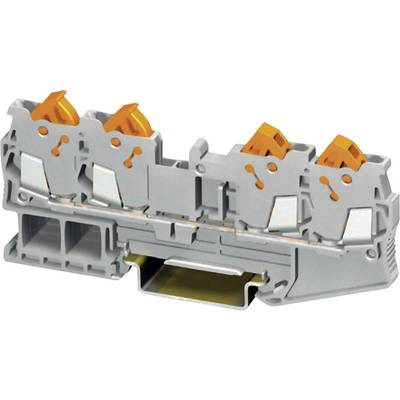

Phoenix Contact 3205077 Continuity 5.2 mm Quick-connect Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Quick-connect
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Datasheet (PDF)
9 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€
Only 9 Piece(s) available
Highlights & Details
QUATTRO-terminal
- QTC 1,5-QUATTRO
Technical specifications
- Product type
Continuity
- Connection
Quick-connect
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
24
- AWG max.
16
- Clamp width
5.2 mm
- No. of rows
1
- Number of pins
4
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
800 V
- Manufacturer part #
3205077
- Content
1 pc(s)
- Industrial packaging
No
- Type
QTC 1,5-QUATTRO
- Dim
(L x W x H) 94 x 5.2 x 39.3 mm
- Width
5.2 mm
- Height
39.3 mm
- Length
94 mm
- Flammability rating
V0
- Insulation material
PA
- Insulation
PA
- Nominal current (details)
17.5 A
- Connection
-
Documents & Downloads
Datasheet
Datasheet 743953 Phoenix Contact 3205077 Continuity 5.2 mm Quick-connect Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 743953 Phoenix Contact 3205077 Continuity 5.2 mm Quick-connect Grey 1 pc(s)
Description
Both sides with separate wire connections. Bridgable feed-through terminal.
