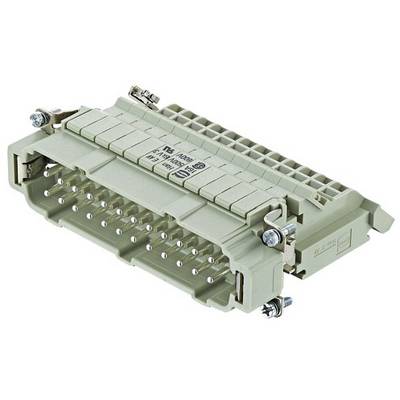

A grey industrial plug with multiple metal pins and screw fastenings, used for electrical connections.

A grey industrial plug with multiple metal pins and screw fastenings, used for electrical connections.

Product type

Pin inset

Number of pins

24

Type

09330244625

Manufacturer part #

09330244625

Factory colour

Pebble grey (RAL 7032)

Datasheet (PDF)

English

HARTING

Show alternatives

Sales and shipping:

Number

Piece(s)

Total (€ 77.30 / piece)

€ 109.24

-29 %

€

Report legal concerns

Technical specifications

Net weight: 221.06 g
Size: 24 B
Rated current: 16 A
Number of contacts: 24
Rated voltage: 500 V
Cross-section of conductor: 0.2 mm² - 2.5 mm²
Gender: Pin
Plug-in cycles: ≥ 500
Tightening torque: 0.5 Nm
Rated surge voltage: 6 kV
Contact surface: Silver-plated
Forward resistance: ≤ 4 mΩ
Pollution degree: 3

Type: 09330244625

Product type: Pin inset

Manufacturer part #: 09330244625

Factory colour: Pebble grey (RAL 7032)

Number of pins: 24

Connection: Screws

Total no. of pins: 24 + PE

Content: 1 pc(s)

Material: Polycarbonate (PC)
Copper alloy

Max. temperature: +125 °C

Leading contact (PE): Yes
