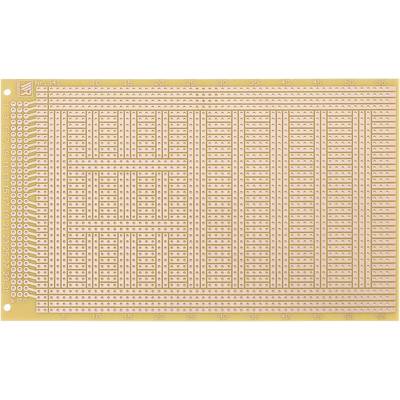

Rademacher WR-Typ 941 Eurocard PCB Epoxide (L x W) 16 cm x 10 cm 35 µm Contact spacing 2.54 mm Content 1 pc(s)
EAN:
Part number:
Item no:
Material
Epoxide
Length
16 cm
Width
10 cm
CS
2.54 mm
No. of conductor strips
37
Datasheet (PDF)
45 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M2 = € 445.63
€ 7.13
5
1 M2 = € 418.75
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m2 = € 445.63)
€
Highlights & Details
Rademacher WR-Typ 941 Eurocard PCB Epoxide (L x W) 16 cm x 10 cm 35 µm Contact spacing 2.54 mm Content 1 pc(s)
- (L x W) 16 cm x 10 cm
- Epoxide with Cu.-plating
Technical specifications
- Can be connected to 96 pin plug in accordance with DIN41612 and 37 pin direct plug
- Type
Connection possibilities for the following plugs:
96-pin according to DIN 41612, grid 2.54 mm
37-pin Direct plug, grid 2.54 mm
If required, a 96-pin plug can also be inserted in the direct plug series.
- Material
Epoxide
- Length
16 cm
- Width
10 cm
- CS
2.54 mm
- Dim
(L x W) 16 cm x 10 cm
- No. of conductor strips
37
- Copper coating (thickness)
35 µm
- Hole Ø
1 mm
- Material thickness
1.5 mm
- Content
1 pc(s)
- Type
WR-Typ 941
- RoHS-compliant
- Material (details)
Epoxide with Cu.-plating
- Material thickness
1.5 mm
- Product type
Eurocard PCB
Documents & Downloads
Datasheet
Datasheet 529568 Rademacher WR-Typ 941 Eurocard PCB Epoxide (L x W) 16 cm x 10 cm 35 µm Contact spacing 2.54 mm Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 529568 Rademacher WR-Typ 941 Eurocard PCB Epoxide (L x W) 16 cm x 10 cm 35 µm Contact spacing 2.54 mm Content 1 pc(s)
Description
With rear silkscreen for simple and clear placement
