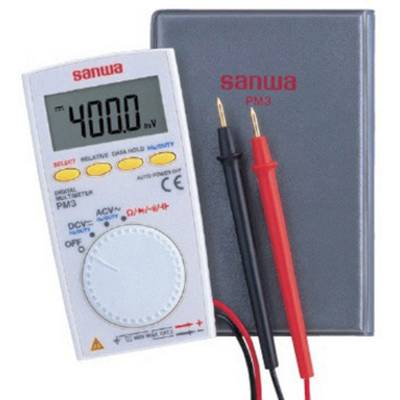

Sanwa Electric Instrument PM3 Handheld multimeter Digital Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 70.58 / piece)
€
Highlights & Details
Pocket multimeter PM3
- 0 TO 400 V AC/DC
- 0 to 40 MOhm
- 0 to 200 µF
- 0 to 100 kHz
- 4,000 digits
- This text is machine translated.
Technical specifications
- Voltage reading range DC (min.)
0 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
400 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
400 V
- Reading range - resistance
0–40 MΩ
- Reading range - capacity
0 - 200 µF
- Frequency reading range
0 - 100 kHz
- Height
108 mm
- Width
56 mm
- Length
11 mm
- Weight
85 g
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Type
PM3
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 11 x 56 x 108 mm
Documents & Downloads
Datasheet
Datasheet 2114719 Sanwa Electric Instrument PM3 Handheld multimeter Digital Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 2114719 Sanwa Electric Instrument PM3 Handheld multimeter Digital Display (counts): 4000
Description
Features
- Channel test
- Diode testing
- Automatic measuring range
Scope of delivery
- Test lead
