Buy Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V

Contactor by Siemens from the SIRIUS series, used for switching electrical loads in industrial applications.

Image similar

A control cabinet with wired electronics stands on the left; to the right, a large window with raindrops reveals production machinery behind it.

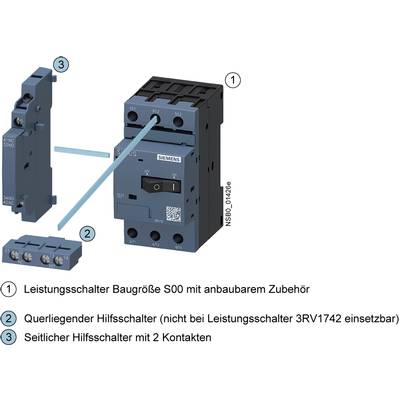

'Miniature circuit breaker Size S00 with attachable accessories': A circuit breaker with a side-mounted and transversely positioned auxiliary switch with 2 contacts.

Diagram of an electrical circuit diagram with a small box and several lines connecting terminals labelled 1/L1, 3/L2, 5/L3.

Technical drawing of a circuit breaker. Front and side view with dimensions in millimetres.

1/5

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.2 A

Connection

Screws

Type

3RV1011-0BA10

Type

S00

Datasheet (PDF)

Dispatches on Thu, 30 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 77.30 / piece)

€ 77.30

plus VAT.

Report legal concerns

Highlights & Details

CIRCUIT-BREAKER, 0.35...0.5 A

Our service for you

Technical specifications

Continuous current: 0.2 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 4 mm²
Max. Conductor cross-section (fine): 2.5 mm²

Product type: Circuit breaker

Type: 3RV1011-0BA10

Type: S00

Amperage adjustment range (min.): 0.14 A

Amperage adjustment range (max.): 0.2 A

Adjustment range (amperage): 0.14 - 0.2 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 75 mm

Width: 45 mm

Height: 90 mm

Dim: (W x H x D) 45 x 90 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 90 mm

: 75 mm

: 0.06 kW

: FALSE

: 0.2 A

: FALSE

: 3

: 690-690 V

: 0.14-0.2 A

: IP20

: TRUE

: Screw connection

: Rocker lever

: Magnetic

: 0 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745450

This article

0.2 A

0.14 A

Siemens 3RV1011-0JA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1702444

1 A

0.7 A

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745448

0.16 A

0.11 A

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

0.16 A

0.11 A

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

0.2 A

0.14 A

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745453

0.25 A

0.18 A

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745454

0.32 A

0.22 A

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745455

0.4 A

0.28 A

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745456

0.5 A

0.35 A

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745457

0.63 A

0.45 A

Documents & Downloads

Datasheet

Datasheet 1745450 Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1745450 Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V

Description

Circuit breaker size S00 for motor protection CLASS 10 A-release 0.35...0.5 A Short-circuit release 6.5 A Spring-type terminal Standard switching capacity !!! Phased-out product !!! Successor is SIRIUS 3RV2 Preferred successor type is 3RV2011-0FA20
