Buy Siemens 3RV2021-0HA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V

An open electrical cabinet with cables and switches stands in a factory hall. Rain can be seen on a glass wall in the background.

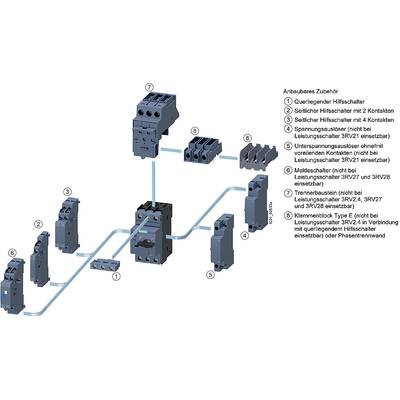

'Diagram shows mounting accessories for power switches: cross-connections, auxiliary switches, voltage tappings and signalling switches, parts numbered 1-9.'

Circuit diagram of a three-phase switch with three main contacts, labelled as 1/L1, 3/L2, 5/L3 and 2/T1, 4/T2, 6/T3.

Drawing of an electrical switching component with front and side views. Dimensions: 97x45 mm (front), 96.9x45 mm (side).

'Drawing of a Siemens switchgear with labels for connections and switch positions. Main switch positioned centrally.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.8 A

Type

3RV2021-0HA10

Type

Amperage adjustment range (min.)

0.55 A

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€

Report legal concerns

Technical specifications

Continuous current: 0.8 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 10 mm²

Product type: Circuit breaker

Type: 3RV2021-0HA10

Type: S0

Amperage adjustment range (min.): 0.55 A

Amperage adjustment range (max.): 0.8 A

Adjustment range (amperage): 0.55 - 0.8 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Connection: Screws

: IP20

Depth: 97 mm

Width: 45 mm

Height: 97 mm

Dim: (W x H x D) 45 x 97 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 97 mm

: 97 mm

: 0.2 kW

: FALSE

: 0.8 A

: FALSE

: 3

: 690-690 V

: 0.55-0.8 A

: IP20

: TRUE

: Screw connection

: Turn button

: Magnetic

: 0.1 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3RV2021-0HA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm

Item no:1741964

Dispatches on Thu, 28 May

Conrad Electronic

This article

0.8 A

0.55 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 73.94^*

Siemens 3RV2021-0GA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 119 x 97 mm

Item no:1702216

Dispatches on Mon, 1 Jun

Conrad Electronic

0.63 A

0.45 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 100.83^*

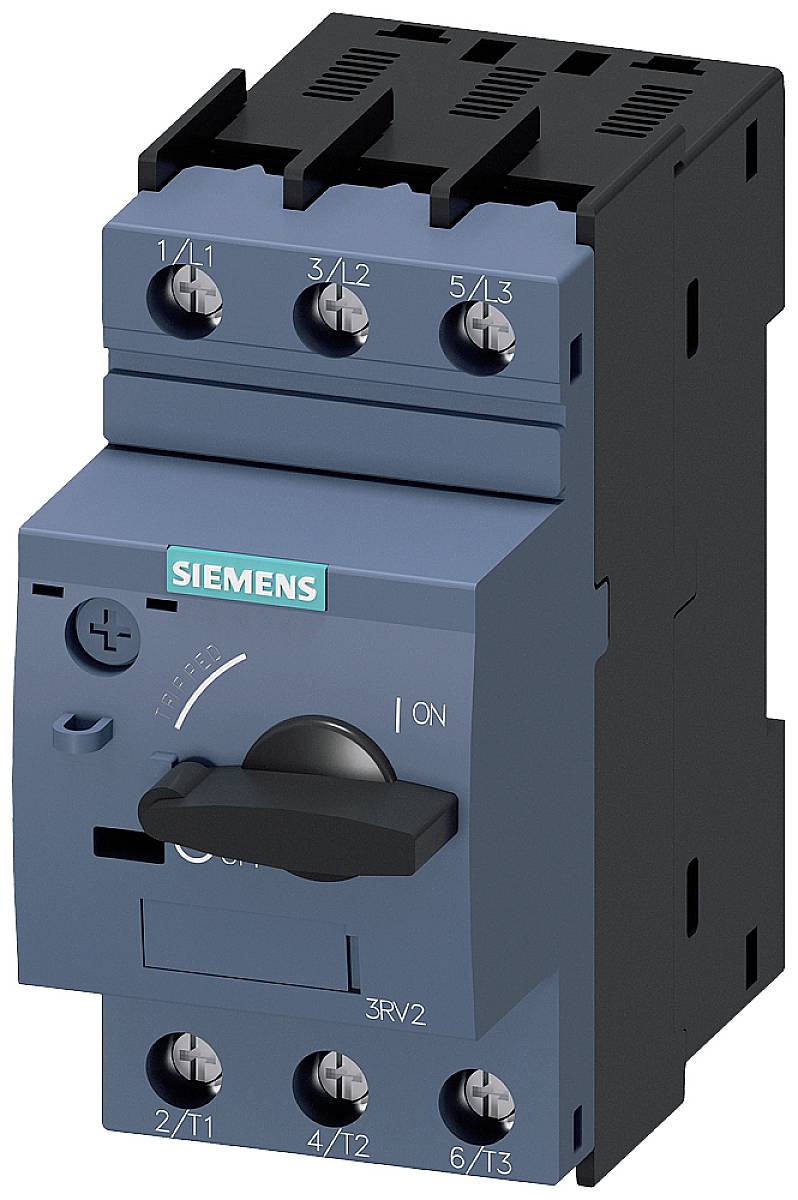

Siemens 3RV2021-0JA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.7 - 1 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 97 x 97 mm
