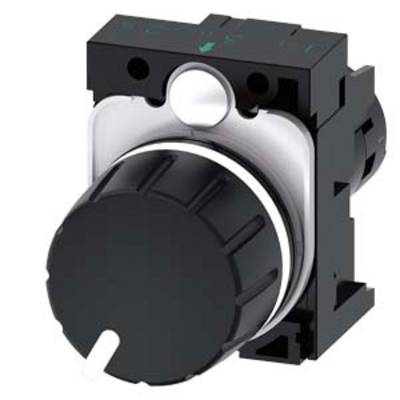

Siemens 3SU12002PW101AA0 3SU1200-2PW10-1AA0 Single turn rotary pot 2.2 kΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
2.2 kΩ
Axle type
Round
Connection
Screws
Electrical angle
280 °
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 96.63 / piece)
€
Highlights & Details
Indicator Traffic Light,red-green-yellow
- 2.2 kΩ
Technical specifications
- Colour: Black
- Isolation voltage: 500 V
- Actuator material: plastic
- Material of the holder: plastic
- Mechanical life: 25000
- Mounting height 19.4 mm
- Product type
Single turn rotary pot
- Resistance
2.2 kΩ
- Connection
Screws
- Electrical angle
280°
- Torque (max.)
1 Nm
- Type
Compact device
- Axle length
46 mm
- Axle type
Round
- Width
30 mm
- Height
40 mm
- (Ø)
22.3 mm
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Tolerance ±
10 %
IP20
- Content
1 pc(s)
- Type
3SU1200-2PW10-1AA0
- Dim
(Ø x H) 22.3 mm x 40 mm
- RoHS-compliant
Yes
22.3 mm
1 W
2200 Ω
Screw connection
Other
Other
Documents & Downloads
Datasheet
Datasheet 1731976 Siemens 3SU12002PW101AA0 3SU1200-2PW10-1AA0 Single turn rotary pot 2.2 kΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1731976 Siemens 3SU12002PW101AA0 3SU1200-2PW10-1AA0 Single turn rotary pot 2.2 kΩ 1 pc(s)
Information
Information 1731976 Siemens 3SU12002PW101AA0 3SU1200-2PW10-1AA0 Single turn rotary pot 2.2 kΩ 1 pc(s)
Description
Indicator light with glow lamp, compact, 22 mm, round, plastic, clear with red-green-yellow LED, lens, smooth, with holder, Operating voltage 230 V AC, screw terminal
Scope of delivery
- 3SU12002PW101AA0.
