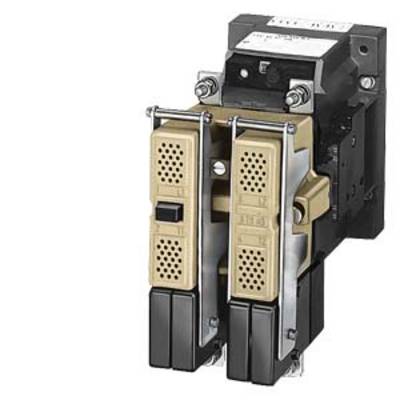

Siemens 3TC5617-5KB4 Contactor 2 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Connection
Screws
Type
3TC5617-5KB4
Type
12
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 5,852.94 / piece)
€
Technical specifications
- Operating power / at DC-3/at DC-5/at 750 V:250 kW
- Type of voltage: DC
- Isolation voltage: 1000 V
- Contact protection against electrical shock: Finger-safe only with terminal cover
- Product type
Contactor
- Type
3TC5617-5KB4
- Type
12
- No. of pins
2-pin
- Contact type
2 makers
- Auxiliary contact type
2 breakers
2 makers
- Permanent current (max.)
400 A
- Mounting type
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP00
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
185 mm
- Height
281 mm
- Depth
314 mm
- Dim
(W x H x D) 185 x 281 x 314 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
2
0
2
2
Screw connection
140 kW
400 A
DC
Documents & Downloads
Datasheet
Datasheet 1739397 Siemens 3TC5617-5KB4 Contactor 2 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1739397 Siemens 3TC5617-5KB4 Contactor 2 makers 1 pc(s)
Description
Contactor assembly for star-delta (wye-delta) starting Size 14, AC-3, 630 kW / 400 V without main conducting path connection between line/delta contactor Alternating current operation 200-240 V AC 50/60 Hz
