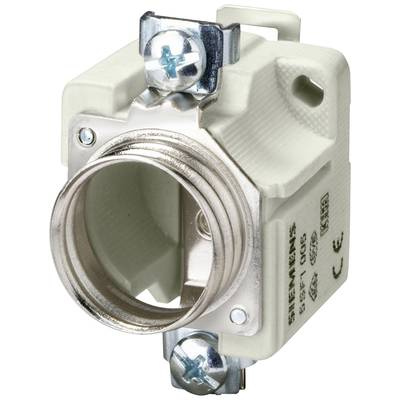

Siemens 5SF1005 DIAZED fuse holder Fuse size = DIII 25 A 500 V AC 5 pc(s)
EAN:
Part number:
Item no:
Product type
DIAZED fuse holder
Fuse size
DIII
Nominal voltage
500 V AC
Nominal current - rounded value
25 A
Nominal current
25 A
Datasheet (PDF)
Sales and shipping:
Technical specifications
- Net weight: 99.56 g
- Product type
DIAZED fuse holder
- Fuse size
DIII
- Nominal voltage
500 V AC
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 38.4 x 70 x 46.6 mm
- Type
DIAZED base, head contact/U-clamp terminal
- Content
5 pc(s)
- Width
38.4 mm
- Height
70 mm
- Depth
46.6 mm
- RoHS-compliant
Yes
DIN rail
Fitted screw
25 A
500 V
1
Porcelain
DII
FALSE
Documents & Downloads
Datasheet
Datasheet 1795938 Siemens 5SF1005 DIAZED fuse holder Fuse size = DIII 25 A 500 V AC 5 pc(s)
User & Safety Instructions
User & Safety Instructions 1795938 Siemens 5SF1005 DIAZED fuse holder Fuse size = DIII 25 A 500 V AC 5 pc(s)
Description
DIAZED socket DII 25A AC DC 500V Head contact/clamp terminal Fuse systems NEOZED and DIAZED with extensive accessories. The NEOZED and DIAZED fuse system from Siemens as an important component of the SENTRON protective components for electrical installation offers effective personal, device and plant protection by safely switching off in the event of an overload or short-circuit. It is mainly used in distribution technology and in industrial switchgear. The system can be operated by amateur and is also approved for domestic installation. The Siemens NEOZED and DIAZED fuse systems are characterized above all by: 1. Matched portfolio and accessories. 2. Fuse links from 2 A to 100 A in different operating classes. 3. Base versions in classic screw-socket technology. 4. Proven quality since 1906.
