Buy STANLEY TLM330s Laser range finder 100 m

Stanley Fatmax TLM 330s Laser Distance Meter with Black Casing and Display.

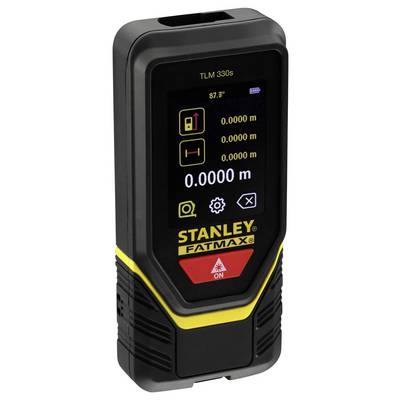

Black laser distance measuring device with yellow and red 'Stanley Fatmax' labelling. Shows model number 'TLM 330s'.

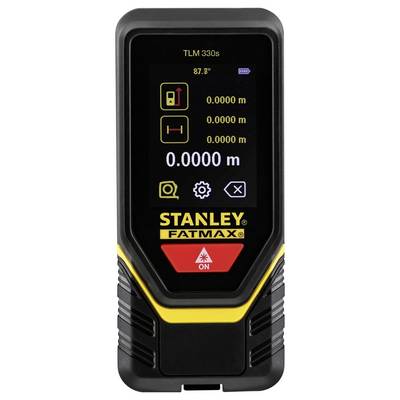

Digital laser distance measuring device with display showing measurements in metres. Displays symbols for area and volume calculation.

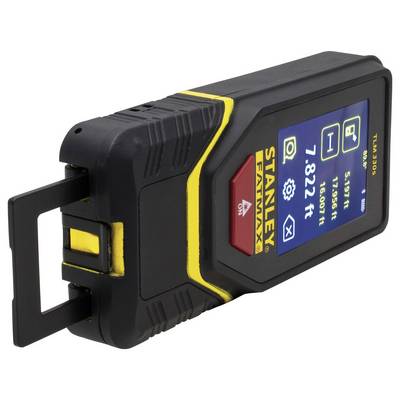

Digital laser distance measurer with an illuminated display, showing distances in feet. Black housing with yellow accents.

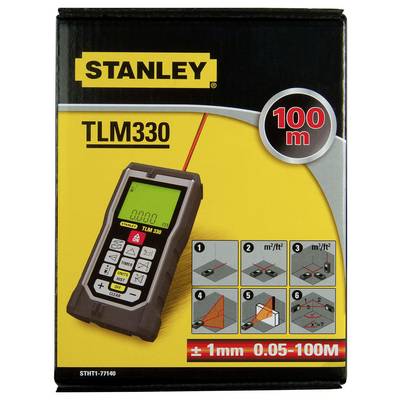

Stanley TLM330 Laser Distance Metre on the packaging. Shows buttons, display, measuring range of 0.05-100 m and accuracy ±1 mm.

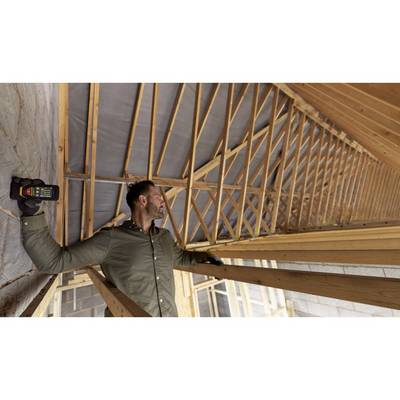

A man on a construction site is checking the interior of a wooden roof structure with a measuring device. He is wearing warm clothing and gloves.

A man is installing an electrical device on a white wall next to large sliding glass doors. Outside, trees and earth are visible.

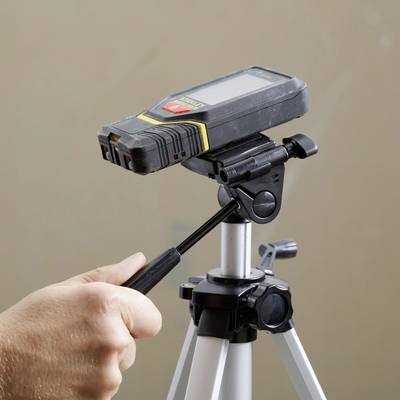

A hand adjusts a digital measuring device on a tripod, ready for precise measurements, in a room-like environment.

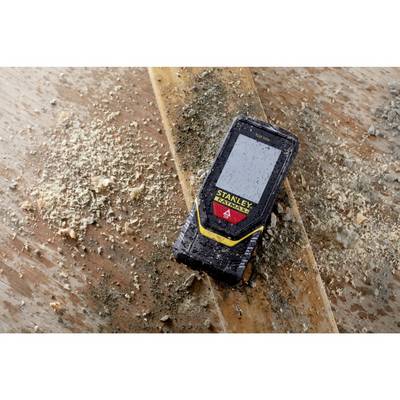

A laser distance measurer lies on a dusty wooden surface, surrounded by sawdust, indicating a construction site environment.

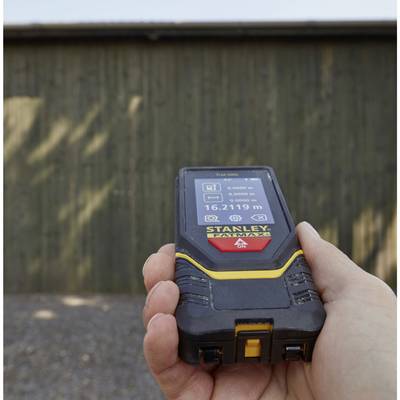

A hand holds a digital distance measuring device displaying '16.219 m' on its screen, while pointing at a wooden wall.

A person is wearing a black Stanley Fatmax bag on a leather belt over jeans at the right hip.

A person is measuring the distance on a white wall using a digital device, surrounded by a window frame with a view to the outside.

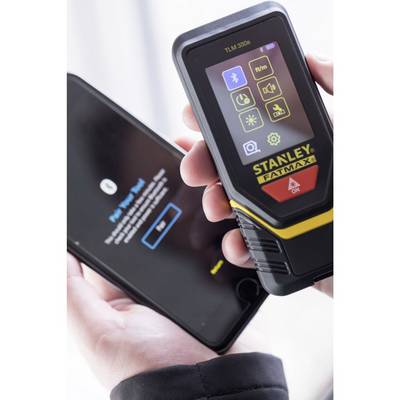

'A person is holding a smartphone with an open app and a Stanley Fatmax device with an illuminated display showing multiple options.'

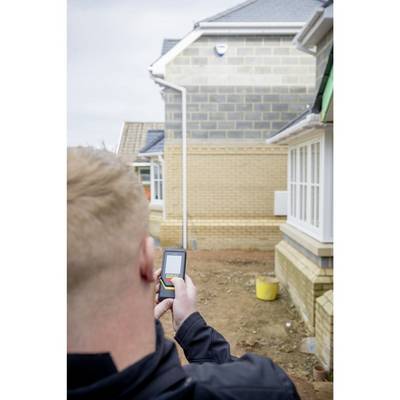

A person is holding a laser distance measuring device and measuring the distance to a partially completed brick house on a construction site.

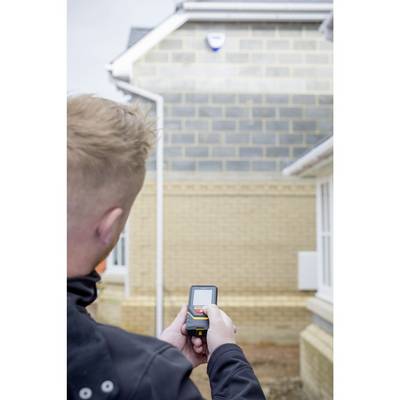

A person is measuring the distance to a wall of a newly built house using a laser device. The wall is made of bricks.

A person is measuring the distance to a brick wall in a garden or yard area using a laser distance meter.

A hand is holding a smartphone displaying an app that measures distance in metres. The device is touching a wooden surface.

1/19

Datasheet (PDF)

Sales and shipping:

Total (€ 222.69 / piece)

€

Report legal concerns

Highlights & Details

Distance sensor TLM330s

Reading range 0.05 m - 100 m
Accuracy ± 1.0 mm;IP54

Technical specifications

Range: -10° - +50 °C
Laser diode: 635 nm,

Product type: Laser range finder

Min. reading range: 0.05 m

Max. reading range: 100 m

Accuracy ±: 1.0 mm

Functions: Length measurement
Area calculator
Volume calculator
Alti
Trapezoid function
Altitude (combo reading)
Partial height measurement (trigonometric)
Non-stop reading
Continuous altitude
Range finding (obstacles)
Triangulation
Mark-out function
Area measurement (incl partial areas)
Addition and substraction
Timer function
Show more

Weight: 100 g

: IP54

Memory: 20

Laser category: 2

Dim: (L x W x H) 124 x 54 x 35 mm

Width: 54 mm

Height: 35 mm

Length: 124 mm

Type: TLM330s

Documents & Downloads

Datasheet

Datasheet 1761202 STANLEY TLM330s Laser range finder 100 m

User & Safety Instructions

User & Safety Instructions 1761202 STANLEY TLM330s Laser range finder 100 m

Description

Compatible with THE Stanley Smart CONNECT APP via Bluetooth®. With a multitude of functions such as length/area/volume/height/trapezium measurement, combined altimeter, partial height measurement (Pythagoras-functions), continuous measurement, constant measurement of height, Distance measurement with obstacles, triangle function, stake-out function and painting function (area with partial measurement).

This text is machine translated.

Features

Measurement of length, area, volume, height, trapeziumCombined height measurement, partial height measurement (Pythagoras functions)Continuous measurementConstant altitude determinationDistance measurement with obstaclesTriangular function, stall functionPainter function (area with partial measurement)Inclination sensor angle to +/- 45 °Display 3-lineBacklightAudible alarmHistory memory: 20Automatic switch-off (laser 90 s/device 180 s)Keypad lockMeasurements per battery charge up to 5,0001/4" tripod mountHistory memory (20)
