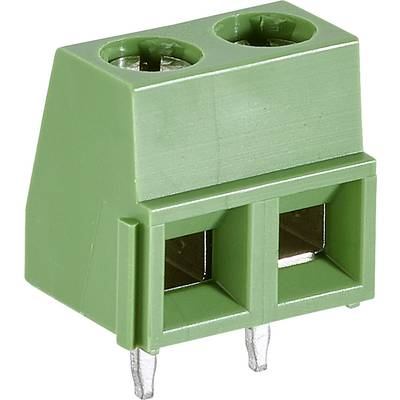

TE Connectivity 282836-2 Screw terminal 1.31 mm² Number of pins 2 Green 1 pc(s)
EAN:
Part number:
Item no:
Product type
Screw terminal
CS
5 mm
Pins per row
2
Number of pins
2
Connection
Screw terminal
Print
191 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.55
15
9% = € 0.05
€ 0.50
25
11% = € 0.06
€ 0.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.55 / piece)
€
Highlights & Details
PCB Terminal
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
282836-2
- Product type
Screw terminal
- Features
Stackable
- CS
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Series
Buchanan
- Min. stripping length
10 mm
- Stripping length (max.)
10 mm
- Connection
Screw terminal
Print
- Nominal current
13.5 A
- Cross section (flexible) (min.)
1.31 mm²
- Nominal current - rounded value
13.5 A
- Cross section (inflexible) (min.)
0.05 mm²
- Cross section (flexible) (max.)
1.31 mm²
- Cross section (inflexible) (max.)
0.05 mm²
- AWG (min.)
30
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
16
- Contact material
Brass tin plated
- Enclosure material
Polyamide 6.6
- Factory colour
Green
- Wire protection
Yes
- Weight
1.717
- Manufacturer part #
282836-2
- Content
1 pc(s)
- Nominal voltage
300 V AC
