tele 2390000 G2PF400VS02 Gamma 3-Phase Voltage Monitoring Relay 3-phase voltage monitoring
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 57.13 / piece)
€ 66.38
-14 %
€
Highlights & Details

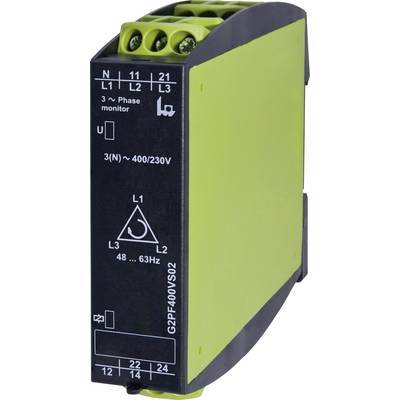

tele 2390000 G2PF400VS02 Gamma 3-Phase Voltage Monitoring Relay 3-phase voltage monitoring
- Large captive terminals
- Potentiometer flush on the front
- Flexible powering options with plug-in module
Technical specifications
- Test surge voltage: 4 kV
- Touch protection: to VBG4
- Installation: TS35 rail
- Type
G2PF400VS02
- Functions
3-phase
Voltage
- Operating voltage
230 V AC
400 V AC
- Contact type
2 change-overs
- Switching voltage (max.)
250 V AC
- Switching current (max.)
5 A
- Max. switching capacity
1250 VA
IP40
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
22.5 mm
- Height
90 mm
- Depth
103 mm
- Dim
(W x H x D) 22.5 x 90 x 103 mm
- Content
1 pc(s)
- Type
3-phase voltage monitoring
- Switching capacity
5 A/250 V/AC (1250 VA) V AC
- Ambient temperature
-25 - +55 °C
- Reading range
3-phase (N) 400/230 V/50/60 Hz
- Operating voltage
400/230 V AC
- Product type
Monitoring relay
Documents & Downloads
Datasheet
Datasheet 505858 tele 2390000 G2PF400VS02 Gamma 3-Phase Voltage Monitoring Relay 3-phase voltage monitoring
User & Safety Instructions
User & Safety Instructions 505858 tele 2390000 G2PF400VS02 Gamma 3-Phase Voltage Monitoring Relay 3-phase voltage monitoring
Description
This monitoring relay of the WatchDog series offers even more functions, in a new housing. Both the external and internal designs are innovative, user-friendly, compact and compliant with international standards. The narrow unit, 22.5 mm, is quick and easy to install, has convenient terminals, a wealth of controls and indicators, and a consistent relay position philosophy (the relay is active if everything is correct) and presentation. The relays are powered by the optional power modules (AC 24 - 400 V) or by the monitored voltage. These functions ensure a perfect fit with the application and facilitate commissioning. Short description type G2PF400VS02: Phase failure and success, asymmetric · Reverse voltage detection using asymmetric values, typically 30 %. · Measured voltage = supply voltage 3-phase (N) 400/230 V/50/60 Hz. · Optional connection of the neutral conductor
