testo 440 Set 100 mm Anemometer
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s) (Only while stocks last)
Sales and shipping:
Number
Total (€ 772.27 / piece)
€
Only 1 Piece(s) available
Highlights & Details
Testo 440 100 mm flugelrad-set with Bluetooth ®
- 100 mm flugelrad-set with Bluetooth ®
- Just as versatile as your challenges: the climate meter is expandable with a large portfolio of digital probes
- Intuitive: Clearly structured measurement menu for volume flow, as well as parallel determination of flow, air humidity and temperature in the ventilation duct or at air discharge openings
- Comfortable: wireless probe, internal data memory, as well as a USB interface for your data export
- Precise: the impeller probe with Bluetooth combine as desired with the telescope for ceiling outlets or the funnel set for disc valves (please order separately)
Technical specifications
- Connectable sensors: 1 x digital sensor with cable or 1 x temperature NTC TUC, 1x digital Bluetooth Smart test, 1 x temperature probe or TESTO TE type K; data transfer: Bluetooth; Storage temperature: -20 to +50 °C; weight: 250 g; dimensions: 154 x 65 x 32 mm, operating temperature -20 to +50 °C; temperature-NTC;Measuring range: -40 to +150 °C, Accuracy ±0.4 °C (-40 to -25,1°C) ±0.2 °C (+25 to +74,9°C) ± 0.4 °C (+75 to +99.9°C) ± 0.5 % v. MW. (The rest of the measuring range); Resolution: 0.1 °C; temperature-TE type K (NiCr-Ni); measuring range: -200 to +1370 °C, accuracy: ± (0.3°C + 0.1% of Mw); Resolution: 0.1 °C
- Product type
Anemometer
- Temperature reading range
-200 up to +1370 °C
Manufacturer's standards (with certificate)
- Temperature reading range (max.)
+1370 °C
- Temperature reading range (min.)
-200 °C
- Power supply (details)
3 AA batteries
Documents & Downloads
Datasheet
Datasheet 1661184 testo 440 Set 100 mm Anemometer
User & Safety Instructions
User & Safety Instructions 1661184 testo 440 Set 100 mm Anemometer
Description
Set for measurements at air outlets.
The flow speed, volume flow and temperature at air discharge openings to measure, the testo 440 Set an effective measuring device directly to the work to begin and offers maximum comfort when setting of air conditioning and ventilation systems.
The testo 440 Set contains a compact hand-held meter and calibration protocol, a vane probe (Ø 100 mm) with Bluetooth incl. temperature sensor for the measuring range +0.3 … +35 m/s, -20 … +70 °C and holder for testo vent measuring funnel. The testo 440 hand-held measuring device is supplied with batteries and is ready for use immediately! To Set a suitable combination case included.
The meter has a large, illuminated color display and has a structured measurement menu by pressing and specific temporal averaging, average volume flow, current measured value, as well as min/max values are displayed. You can also dimension and geometry of the channel cross-section must be entered to calculate an exact calculation of the volume flow. Other measurement menus as long-term measurement and volume flow measurement with funnel are also possible.
The testo 440 meter collects and evaluates your measurement data and may be used up to 7,500 measurement protocols in its integrated measurement data memory.
Measurement protocols can be read via a USB-interface and as a CSV file on the computer (e.g. with Excel) can be processed further.
In the handheld meter are practical magnets to secure the device to metal surfaces (e.g. flow channel) are integrated. Automatic recognition of the probes, is available. Using the button on the handle, the individual measured values. The Bluetooth handle provides for more comfort for your measurement and less cable clutter in the bag!
This text is machine translated.
The flow speed, volume flow and temperature at air discharge openings to measure, the testo 440 Set an effective measuring device directly to the work to begin and offers maximum comfort when setting of air conditioning and ventilation systems.
The testo 440 Set contains a compact hand-held meter and calibration protocol, a vane probe (Ø 100 mm) with Bluetooth incl. temperature sensor for the measuring range +0.3 … +35 m/s, -20 … +70 °C and holder for testo vent measuring funnel. The testo 440 hand-held measuring device is supplied with batteries and is ready for use immediately! To Set a suitable combination case included.
The meter has a large, illuminated color display and has a structured measurement menu by pressing and specific temporal averaging, average volume flow, current measured value, as well as min/max values are displayed. You can also dimension and geometry of the channel cross-section must be entered to calculate an exact calculation of the volume flow. Other measurement menus as long-term measurement and volume flow measurement with funnel are also possible.
The testo 440 meter collects and evaluates your measurement data and may be used up to 7,500 measurement protocols in its integrated measurement data memory.
Measurement protocols can be read via a USB-interface and as a CSV file on the computer (e.g. with Excel) can be processed further.
In the handheld meter are practical magnets to secure the device to metal surfaces (e.g. flow channel) are integrated. Automatic recognition of the probes, is available. Using the button on the handle, the individual measured values. The Bluetooth handle provides for more comfort for your measurement and less cable clutter in the bag!
This text is machine translated.

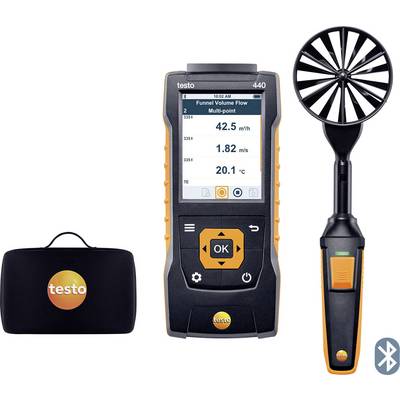

Scope of delivery
- Testo 440 climate meter, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
- Vane probe (Ø 100 mm) with Bluetooth ® incl. temperature sensor (consisting of 100 mm vane probe head, hand grip adapter and Bluetooth® hand grip), holder for testo vent measuring funnel, 4 x AA batteries and calibration protocol (0635 9431)
- Base case for testo 440 and 1 probe
