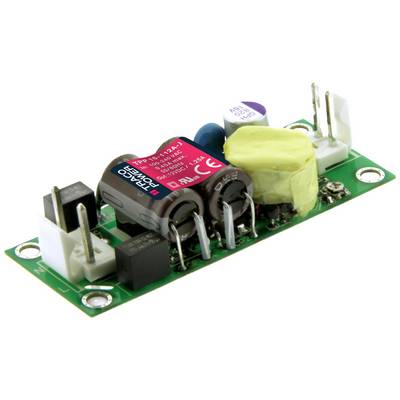

TracoPower TPP 15-136A-J SMPSU 39.6 V DC 417 mA 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€
Highlights & Details
AC/DC switched-mode power supply, TPP 15-series
- 15 watt power supply unit for medical applications in open frameSafety standards according to IEC/EN/ES 60601-1, 3rd edition, 2x MOPPRisk management in accordance with ISO 14971Sustained short-circuit protectionE/A-INSULATION 4000 VACProtection classes I and II
- This text is machine translated.
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
417 mA
- Output current (max.) - rounded
417 mA
- Min. input voltage
85 V AC
- Dim
(L x W x H) 66.2 x 25.4 x 18.5 mm
- Output voltage (max.)
39.6 V DC
- Connection
Connector
15 W
- No. of outputs
1 x
- Type
open
- Weight
19 g
- Width
25.4 mm
- Height
18.5 mm
- Length
66.2 mm
- Type
TPP 15-136A-J
- Output current (min.)
0 mA
- Output voltage (min.)
32.4 V DC
- No. of inputs
1 x
- Interference suppression
EN 55011, according to IEC 60601-1-2 4th Edition EN 55032, class B
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2792766 TracoPower TPP 15-136A-J SMPSU 39.6 V DC 417 mA 15 W
User & Safety Instructions
User & Safety Instructions 2792766 TracoPower TPP 15-136A-J SMPSU 39.6 V DC 417 mA 15 W
Warranty Terms
Warranty Terms 2792766 TracoPower TPP 15-136A-J SMPSU 39.6 V DC 417 mA 15 W
