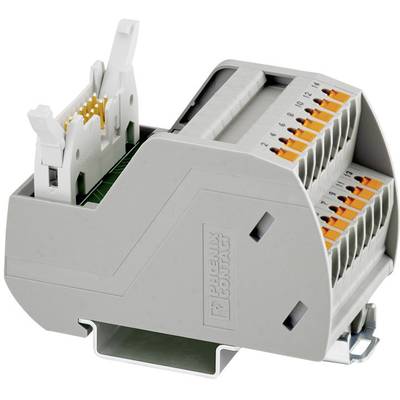

Transfer module Varioface-VIP Phoenix Contact 2903790 VIP-2/PT/FLK20 Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
20
AWG
26 - 14
Stripping length (max.)
8 mm
Dim
(L x W x H) 56 x 57.10 x 72.10 mm
Datasheet (PDF)
131 Piece(s)
Sales and shipping:
Number
Total (€ 40.33 / piece)
€
Technical specifications
- Product type
Transfer module
- Total no. of pins
20
26 - 14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 56 x 57.10 x 72.10 mm
- Connector (field)
Pull spring
- Connector (control)
IDC-FLK power strip
- Operating current
1 A
- Content
1 pc(s)
- Number of pins
20
- Width
57.10 mm
- Height
72.10 mm
- Length
56 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Mounting type
NS35 rail
