Buy WAGO 254-452 Spring-loaded terminal 1.50 mm² Number of pins 2 Grey 420 pc(s)

Grey electrical multi-pin connector and socket; product component for electronic devices.

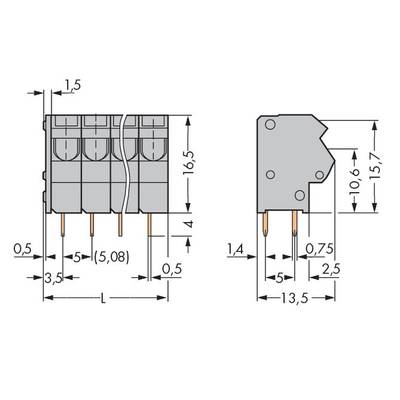

Figure of a technical drawing of an electrical connector with dimensions: 16.5 mm high, 10.6 mm deep, 5.08 mm width of connections.

'Current load capacity curve shows current in A against ambient temperature in °C. Includes curves for 2-, 4-, 6- and 12-pole configurations.'

1/3

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 420 pc(s))

Set(s)

Total (€ 281.51 / piece)

€

Report legal concerns

Highlights & Details

1-conductor PCB terminal strip

Content 420 pc(s)

Technical specifications

PUSHWIRE PCB MOUNT TERM. 2 POLE ANG

Features: + PUSH WIRE®

CS: 5 mm
5.08 mm

Pins per row: 2

Number of pins: 2

Series: 254

Min. stripping length: 8 mm

Stripping length (max.): 8 mm

Connection: Spring-loaded terminal
Print

Nominal current: 24 A

Cross section (flexible) (min.): 0.50 mm²

Nominal current - rounded value: 24 A

Cross section (inflexible) (min.): 0.50 mm²

Cross section (flexible) (max.): 1.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 20

Connector orientation: At an angle (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Enclosure material: Polyamide

Factory colour: Grey

Wire protection: Yes

Actuation direction: Perpendicular (to the PCB)

Content: 420 pc(s)

Height: 13.50 mm

Length: 11.50 mm

Width: 19.70 mm

Industrial packaging: Yes

Manufacturer part #: 254-452

Type: 254-452

Nominal voltage: 320 V

Product type: Spring-loaded terminal
