WAGO 739-306 Spring-loaded terminal 1.50 mm² Number of pins 6 Grey 200 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded terminal
CS
3.50 mm
Pins per row
6
Number of pins
6
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Sales and shipping:
Number (Package size 200 pc(s))
Total (€ 2.33 / piece)
€
Technical specifications
- PCB TERM.STRIP CC, 3.5MM 6 P. GREY
- Type
739-306
- Product type
Spring-loaded terminal
- Features
+ CAGE CLAMP®
- CS
3.50 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Series
739
- Min. stripping length
8 mm
- Stripping length (max.)
6 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
14
- Contact material
Cathode copper, tin plated
- Factory colour
Grey
- Wire protection
Yes
- Weight
3.86 g
- Manufacturer part #
739-306
- Industrial packaging
Yes
- Content
200 pc(s)
- Nominal voltage
160 V

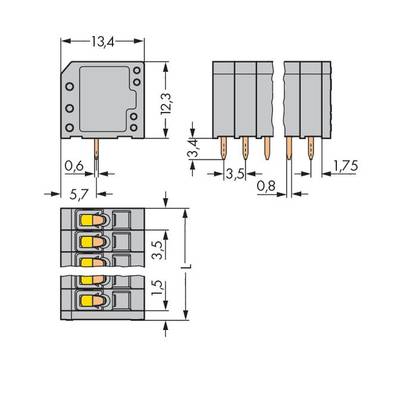

- Width
22.50 mm
- Height
15.70 mm
- Length
13.40 mm
- Depth
13.4 mm
