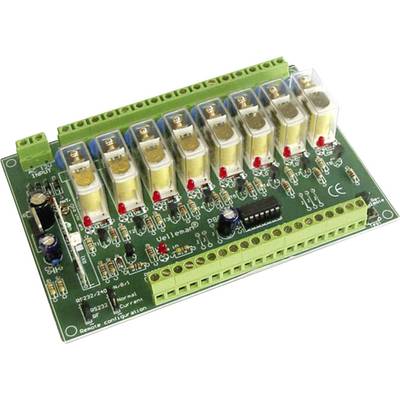

Whadda K8056 Relay card Assembly kit 12 V DC
- Item no.: 190989
- Manufacturer no.: K8056
- EAN: 5410329283049
Independent relay cards that can be controlled through switches or open collector-outputs or remote controlled via RS232. Since the card can be controlled with the commands of RS232, you can implement tailor-made applications in every programming lan…
- Warranty: 24 months
- Manufacturer: Whadda
- Item no.: 190989
- Manufacturer no.: K8056
- EAN: 5410329283049
Independent relay cards that can be controlled through switches or open collector-outputs or remote controlled via RS232. Since the card can be controlled with the commands of RS232, you can implement tailor-made applications in every programming lan…
- Warranty: 24 months
- Manufacturer: Whadda
Technical data
| Operating voltage | 12 V DC |
|---|---|
| Current consumption | 500 mA |
| Output rating | 5 A/230 /AC |
| Version | Assembly kit |
| Dim | (L x W x H) 107 x 160 x 30 mm |
| Height | 30 mm |
| Length | 107 mm |
| Width | 160 mm |
| Inputs / outputs | 8 relay outputs |
| No. of relay outputs | 8 |
| Relay Current | 5 A |
|---|---|
| Operating voltage | 12 V DC |
| Product type | Relay card |
Documents & Downloads
Whadda K8056 Relay card Assembly kit 12 V DC
Independent relay cards that can be controlled through switches or open collector-outputs or remote controlled via RS232. Since the card can be controlled with the commands of RS232, you can implement tailor-made applications in every programming language or on every computer platform.
Facts
- Separate relay on / off test with "moment" or "toggle" function
- "Delete All" function - "All relays are set"
- Address selection: Up to 255 cards can be selected.
- Emergency switch for all cards
- 8 "drive inputs" can be used with open collectors or regular switches
- RS232 input controls the card with a computer and terminal: Transfer rate: 2400, 8 data bits, 1 stop bit.
System Requirements
- Pentium class CPU · Windows 95 or higher · Mouse · Freer RS232-Port.
- Warranty: 24 months
- Manufacturer: Whadda
