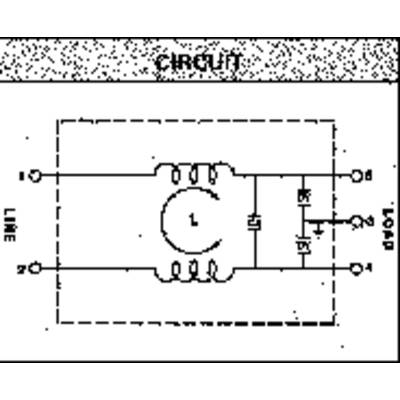

Stroke drawing/circuit diagram
1/3
Stroke drawing/circuit diagram
Yunpen 521349 YG10T5 EMI filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 55 x 25 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
5
3% = € 0.25
€ 8.14
10
5% = € 0.42
€ 7.97
50
10% = € 0.84
€ 7.55
100
20% = € 1.68
€ 6.71
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 8.39 / piece)
€
Highlights & Details
Universal line filter
Technical specifications
- Test symbols: UL, CSA, Cx 0.1 uF
- Cy 3300 pF
- Connection
Type C CEE 7/16 plug 2.8 mm
- Mounting type
Structure
- Inductance (L)
0.3 mH
- Capacity (elec.)
3300 pF
- Nominal voltage
250 V AC
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Length
68 mm
- Width
55 mm
- Height
25 mm
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Manufacturer part #
521349
- Type
YG10T5
- Content
1 pc(s)
- Dim
(L x W x H) 68 x 55 x 25 mm
- Nominal voltage (details)
125/250 V/AC (50/60Hz)
- Nominal current (details)
10 A
- Connection
by spade connector (2.8 x 0.5 mm)
- Temperature range
-25 - +85 °C
- RoHS-compliant
Yes
- Product type
EMI filter
Documents & Downloads
Datasheet
Datasheet 521349 Yunpen 521349 YG10T5 EMI filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 55 x 25 mm 1 pc(s)
Conformity certificate
Conformity certificate 521349 Yunpen 521349 YG10T5 EMI filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 55 x 25 mm 1 pc(s)
Certificate
Certificate 521349 Yunpen 521349 YG10T5 EMI filter 250 V AC 10 A 0.3 mH (L x W x H) 68 x 55 x 25 mm 1 pc(s)
Description
These filters are normally used to protect devices against interference from the mains supply; they should be mounted as close as possible to the mains voltage input. They also greatly attenuate noise voltages that may be generated inside the device itself, and prevent them from entering the power supply.
