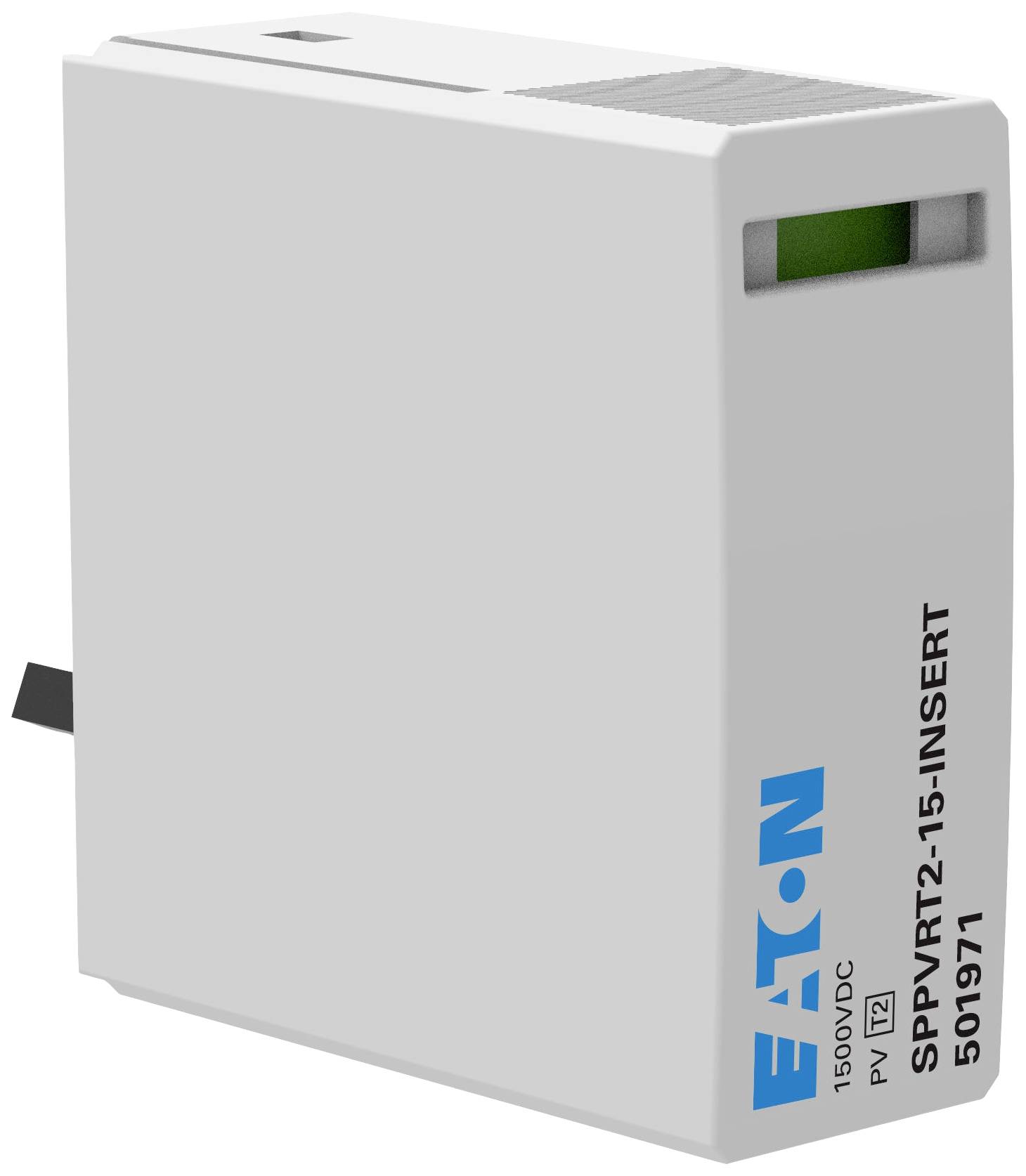

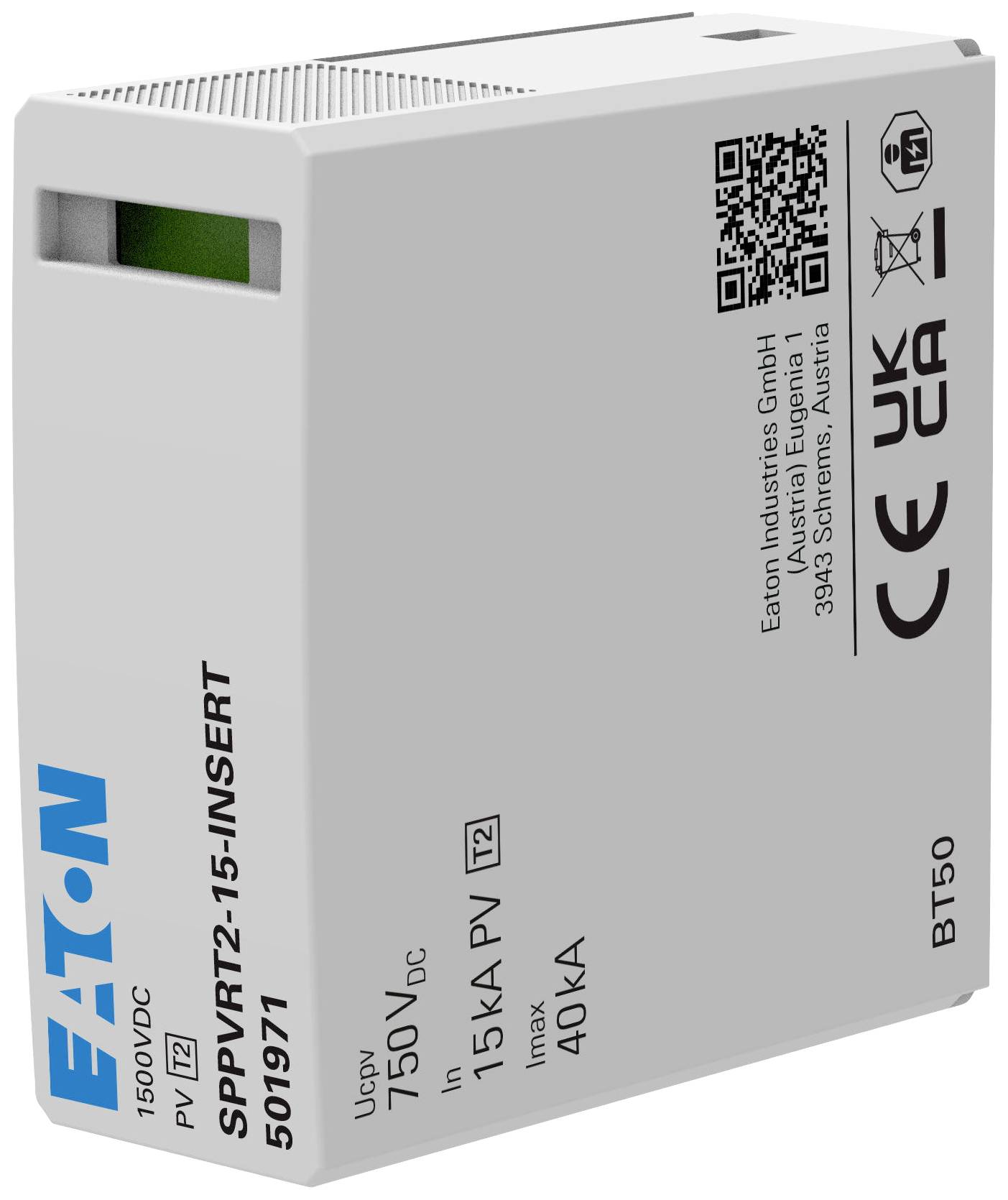

Eaton EP-501971 SPPVRT2-15-INSERT Surge protection module Surge protection for: PV systems 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Technical specifications
- Product type
Surge protection module
- Surge protection for
PV systems
- Nominal voltage
1500 V
- Manufacturer part #
EP-501971
- Factory colour
Grey
- Dim
(W x H x D) 18 x 45 x 45 mm
- Width
18 mm
- Height
45 mm
- Depth
45 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3193603 Eaton EP-501971 SPPVRT2-15-INSERT Surge protection module Surge protection for: PV systems 1 pc(s)
Description
Overvoltage protection for protection of PV systems on the DC side, for use according to IEC/EN 60364-5-53. SPPVR is a separate product line for protective devices for photovoltaic systems. SPPVR products can be used in residential areas (distribution boxes) or commercial applications (array protection boxes in photovoltaic systems).
This text is machine translated.
This text is machine translated.
Features
- For all models, the auxiliary switches are included in the "-AX" types
- Class 1 and Class 2 Combined Devices for use with direct lightning damage risk
- Class 2 tested devices for the majority of applications
- Can be used universally thanks to its design at high temperatures
- Wide range of products covering 600 to 1,500 VDC applications
- Special overvoltage protection that protects two MPPTs with one device
- Future-proof series for all possible application cases
