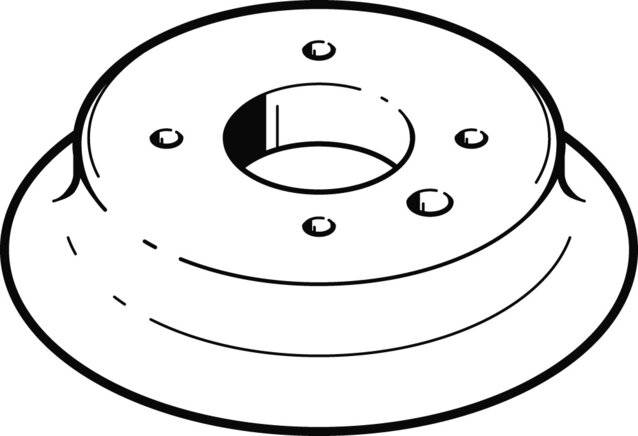

Image similar

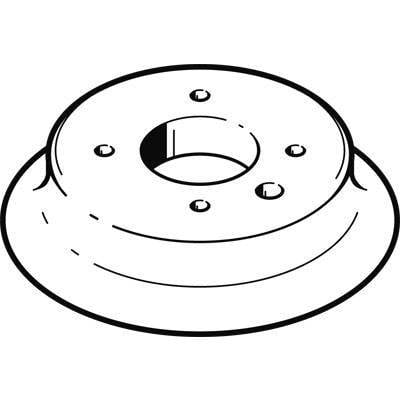

Image similar
FESTO Vacuum suction cup ESV-80-SS 191005 Sealant VMQ (silicone)
EAN:
Part number:
Item no:
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
14-day return policy included
Highlights & Details
Technical specifications
- Connection position: Top
- Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
- All mounting positions permitted
- Color: Transparent
- Holding force at rated operating pressure 309.7 N.
- Food suitability: See extended material information
- Min Workpiece radius R: 400 mm
- Product weight: 33 g
- Suction unit diameter 80 mm
- Suction cup shape: Round flat
- Suction unit volume: 19.312 cm3
- Shore hardness 50 +/- 5
- Ambient temperature: -30 ... 180 °C
- Material suction unit: VMQ (silicone)
- Material information: Free of copper and PTFE
- Lab containing substances
- Complies with RoHS
- Operating medium
Atmospheric air
- Product type
Vacuum suction cup
- Operating temperature
-30 °C (min)
- Min. operating temperature
-30 °C
- Manufacturer part #
191005
- Sealant
VMQ (silicone)
- Weight
33 g
- Media temperature (range)
-30 up to 180 °C
- Max. media temperature
180 °C
- Media temperature (min.)
-30 °C
- Medium
Natural air
- Max. ambient temperature
+180 °C
- Min. ambient temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2204010 FESTO Vacuum suction cup ESV-80-SS 191005 Sealant VMQ (silicone)
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
