Highlights & Details

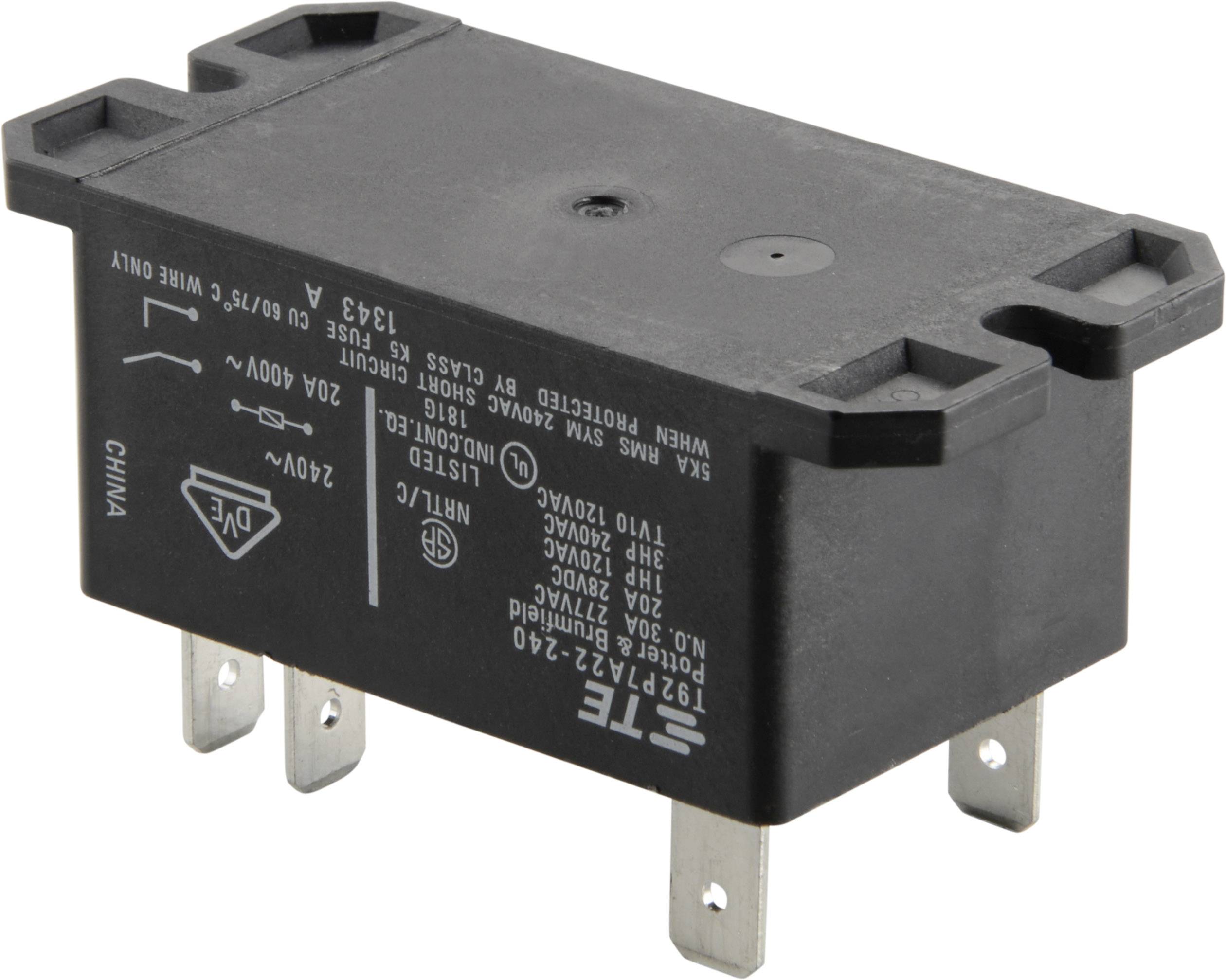

1393211-62 Plug-in relay 240 V AC 30 A 2 makers 1 pc(s)
- Sealed against dust
Technical specifications
- Connection: 6.3mm spade connectors, male
- Product type
Plug-in relay
- Type
1393211-62
- Coil nominal voltage
240 V AC
- Min. pick-up voltage
192 V AC
- Max. pick-up voltage
264 V AC
- Control mode
monostable, 1 coil
- Resistance (coil)
3800 Ω
- Contact type
2 makers
- Contact material
AgCdO
- Switching voltage (max.)
28 V DC
277 V AC
- Switching current (max.)
30 A
- Max. switching capacity
560 W
8310 VA
- Creepage distance (coil/clips)
9.5 mm
- Connection
Type C CEE 7/16 plug 6.3 mm
- Response time
15 ms
- Fall time
10 ms
- Min. temperature
-40 °C
- Max. temperature
+65 °C
- Length
51.2 mm
- Width
33.5 mm
- Height
30 mm
- Dim
(L x W x H) 51.2 x 33.5 x 30 mm
- Content
1 pc(s)
- Nominal voltage (details)
240 V/AC
- Test voltage
Contact/ coil 4 kV, between contacts 1.5 kV
- Type
1393211-62
Documents & Downloads
Datasheet
Datasheet 505064 1393211-62 Plug-in relay 240 V AC 30 A 2 makers 1 pc(s)
Description
Neutral monostabile. This compact high capacity relay is mostly used in HVAC plant because of the high powers it can control. It is an economical alternative to larger contactors.
Hints
Dust proof
