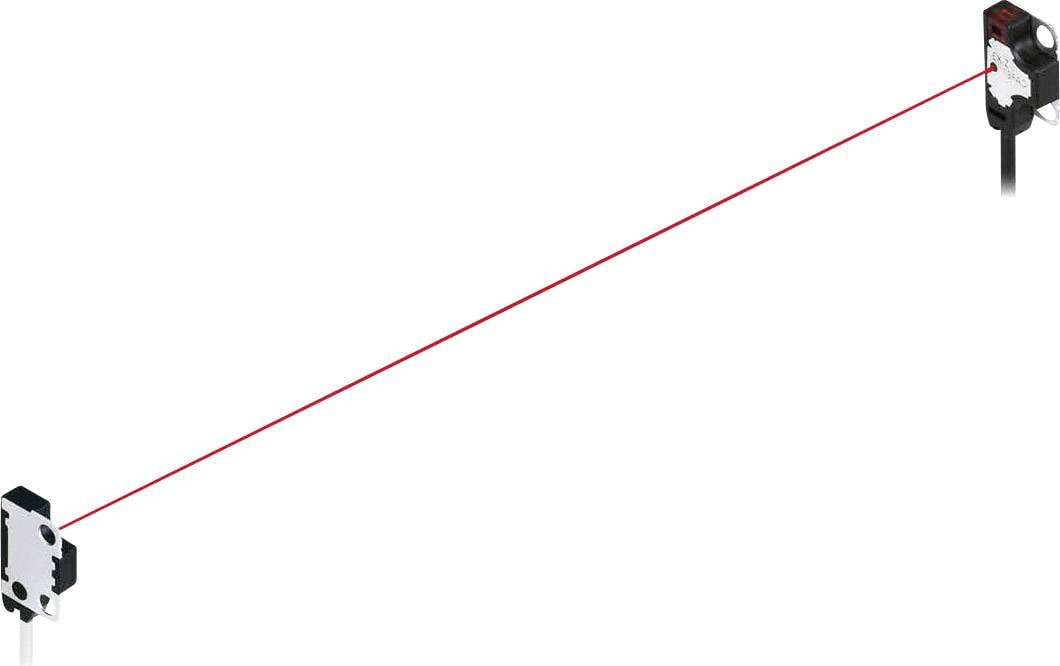

Panasonic One-way light barrier EX-Z13B-P EX-Z13B-P Lateral, Transmitter, Receiver Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Product type
One-way light barrier
Functions
Dark-ON
Max. operating voltage
24 V DC
Connector
Cable, open end
Type
EX-Z13B-P
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
Only 3 Piece(s) available
Highlights & Details
One-way light barrier EX-Z
- High protection class IP67
- Response time 0.5 ms
Technical specifications
- Product type
One-way light barrier
- Type
EX-Z13B-P
- Model
Lateral
Transmitter
Receiver
- Functions
Dark-ON
- Operating voltage
12 V DC
24 V DC
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Operating voltage
12 - 24 V DC
- Response time
0.5 ms
- Outputs
PNP
- Connector
Cable, open end
- Cable length
2.00 m
500 mm
IP67
- Min. temperature
-10 °C
- Max. temperature
55 °C
- Width
5.5 mm
- Height
15.9 mm
- Depth
6.5 mm
- Dim
(W x H x D) 5.5 x 15.9 x 6.5 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1541167 Panasonic One-way light barrier EX-Z13B-P EX-Z13B-P Lateral, Transmitter, Receiver Dark-ON 1 pc(s)
Description
Miniaturized one-way light barrier with a large range of 0.5 mm. Fast adjustment by visible red LED. Detection of small objects, such as wire. Two-color LED indicator for stability (green) and output (Orange).
Applications: object detection, position detection, positioning, presence control.
This text is machine translated.
Applications: object detection, position detection, positioning, presence control.
This text is machine translated.
Scope of delivery
- 1x (Sender)
- 1x receiver
- Mounting screws M2
Hints
For more information on this EX-Z13B-P, please refer to its datasheet under 'downloadable documents'
