Highlights & Details
Signal transmitter without electronics AL-60 Series
- 85 dB
- 1.5 V DC
Technical specifications
- Resistance: 16 Ω
- Product type
Alarm sounder
- Impedance
40 Ω
- Fastening method
PCB
- Voltage
1.5 V DC

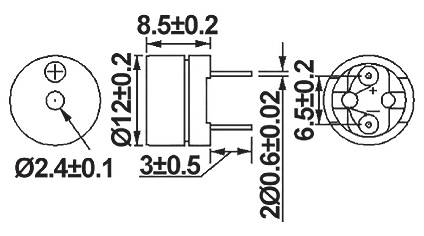

- Dim
(Ø x H) 12 mm x 14.5 mm
- Connection
Print
- Type
Round
- Noise emission
85 dB
- Content
1 pc(s)
- Features
No circuits
- Height
14.5 mm
- (Ø)
12 mm
- Pitch
7.6 mm
- Resonance
2048 Hz
- Type
AL-60P01, 16 OHM
- Connection
PCB
- Type
AL-60P01
- Volume
85 dB
- SPL
85 dB
- Current consumption
30 mA
- Operating temperature
-25 - +70 ºC
- Operating voltage
1 - 2 V DC
Documents & Downloads
Datasheet
Datasheet 710109 155090 Alarm sounder Noise emission: 85 dB Voltage: 1.5 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 710109 155090 Alarm sounder Noise emission: 85 dB Voltage: 1.5 V DC 1 pc(s)
Description
Signal transmitter with extremely low current consumption and particularly small dimensions. Application examples: measuring and test equipment, radio controlled clocks.
