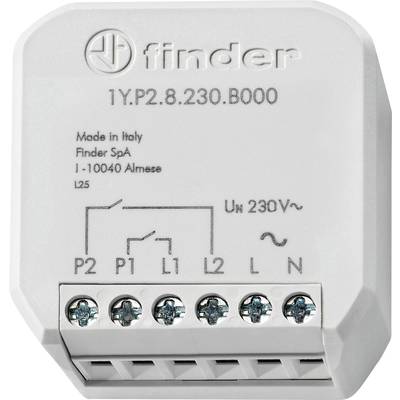

1Y.P2.8.230.B000 Finder YESLY 2-channel Input module
EAN:
Part number:
Item no:
Number
Total (€ 65.54 / piece)
€ 65.54
plus VAT.
14-day return policy included
Finder YESLY input interface, UP-mounting
Highlights & Details
- Integration of existing switches or buttons
- Connection to PLC or relay contacts
- Two separate input channels
- Ideal for concealed installation in flush-mounted sockets
Technical specifications
- Product type
Input module
- Series
Finder YESLY
- Dim
(W x H x D) 43 x 44.1 x 21.9 mm
- Transfer Standard (Smart Home)
Bluetooth Low Energy
Wi-Fi
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
10 m
- Mounting type
Flush mount
- Width
43 mm
- Height
44.1 mm
- Depth
21.9 mm
- Hub
Not required, optional for remote access
n.rel.
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2163010 1Y.P2.8.230.B000 Finder YESLY 2-channel Input module
Information
Information 2163010 1Y.P2.8.230.B000 Finder YESLY 2-channel Input module
Description
The input interface 1y.P2.8.230.B000 for flush or can mounting allows the use of existing conventional switches or buttons with the YESLY system. This is optimal if, for optical or structural reasons, the existing switches or buttons are to be used again – but these "smart" buttons are integrated into the system via the Bluetooth® Low Energy radio signal. The interface also works with relay outputs or programmable logic controllers and transfers switching commands to the YESLY universe. The device has two separate input channels. Up to 5 light switches (current consumption of glow lamp max. 1 mA) can also be connected.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Input interface
- User manual.
Hints
CE approved
