2.5 mm WTW/WTB 08700102 MOL Power & Signal Sol. Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Crimp contact
Connector type
Plug
AWG
28 - 22
Connection
Crimp
Press-in
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.05
50
20% = € 0.01
€ 0.04
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.05 / piece)
€ 0.05
plus VAT.
14-day return policy included
Highlights & Details
2.5 mm WTW/WTB

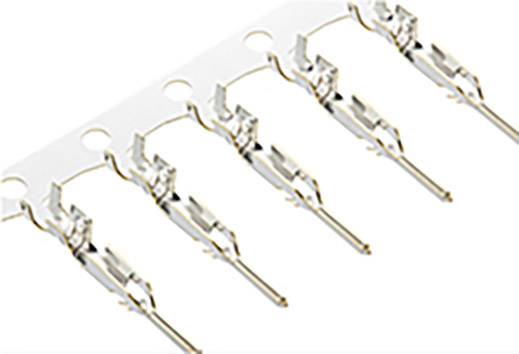

- 2.50mm Pitch Mini-Latch Crimp Terminal, Male, Brass, Reel
- This text is machine translated.
Our service for you
Technical specifications
- Please review the product datasheet for further information.
- Packaging type
Tape on Full reel
- Product type
Crimp contact
- Connector type
Plug
28 - 22
- Connection
Crimp
Press-in
- Test current
3 A
- Manufacturer part #
08700102
- Content
1 pc(s)
- Contact material
Brass tin plated
- RoHS-compliant
Yes
- Type
MOL Power & Signal Sol.
Documents & Downloads
Datasheet
Datasheet 2901022 2.5 mm WTW/WTB 08700102 MOL Power & Signal Sol. Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2901022 2.5 mm WTW/WTB 08700102 MOL Power & Signal Sol. Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 2901022 2.5 mm WTW/WTB 08700102 MOL Power & Signal Sol. Molex Content: 1 pc(s)
Description
2.50mm Pitch Mini-Latch Crimp Terminal, Male, Brass, Reel
