Buy VOLTCRAFT MS-4PS-E Safety test lead 4 mm safety plug Test probe 1.00 m Black, Red 1 pc(s)

Two test probes with red and black cables and matching covers, used for electrical measurements and testing.

Two measuring leads with red and black test probes, suitable for multimeters for conducting electrical measurements.

Voltage testing devices with varying protection categories: CAT II 1000V, CAT III 1000V, CAT IV 600V. Demonstrates device development and protection levels.

A person is holding a red cable with two hands, with one hand gripping the end with a plug.

'A person is checking the voltage of a white power strip on a wooden table using a multimeter.'

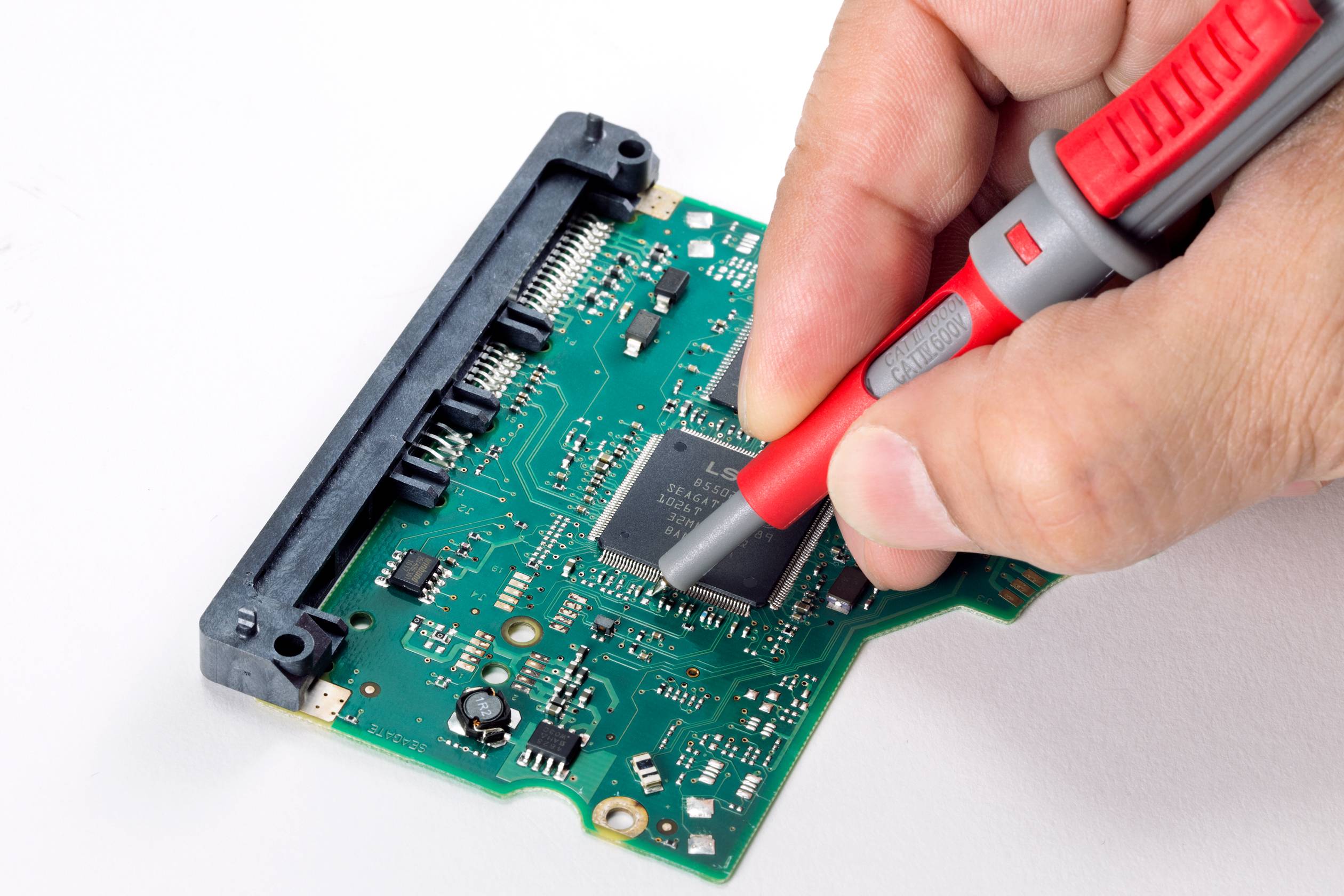

A hand is repairing a green circuit board populated with electronic components using a testing device.

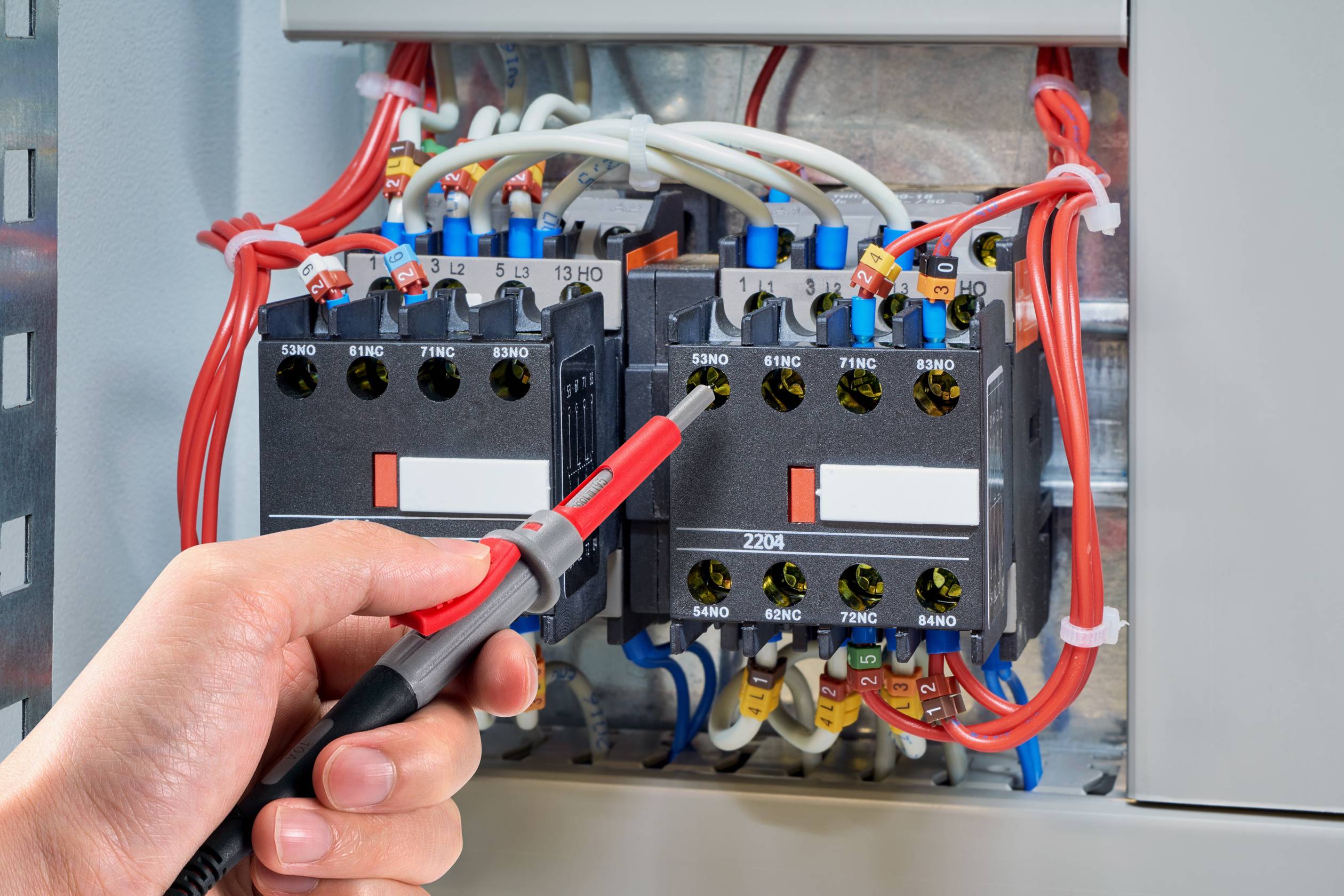

A hand holds a voltage tester in an electrical cabinet. Various colourful cables are connected to a switching device.

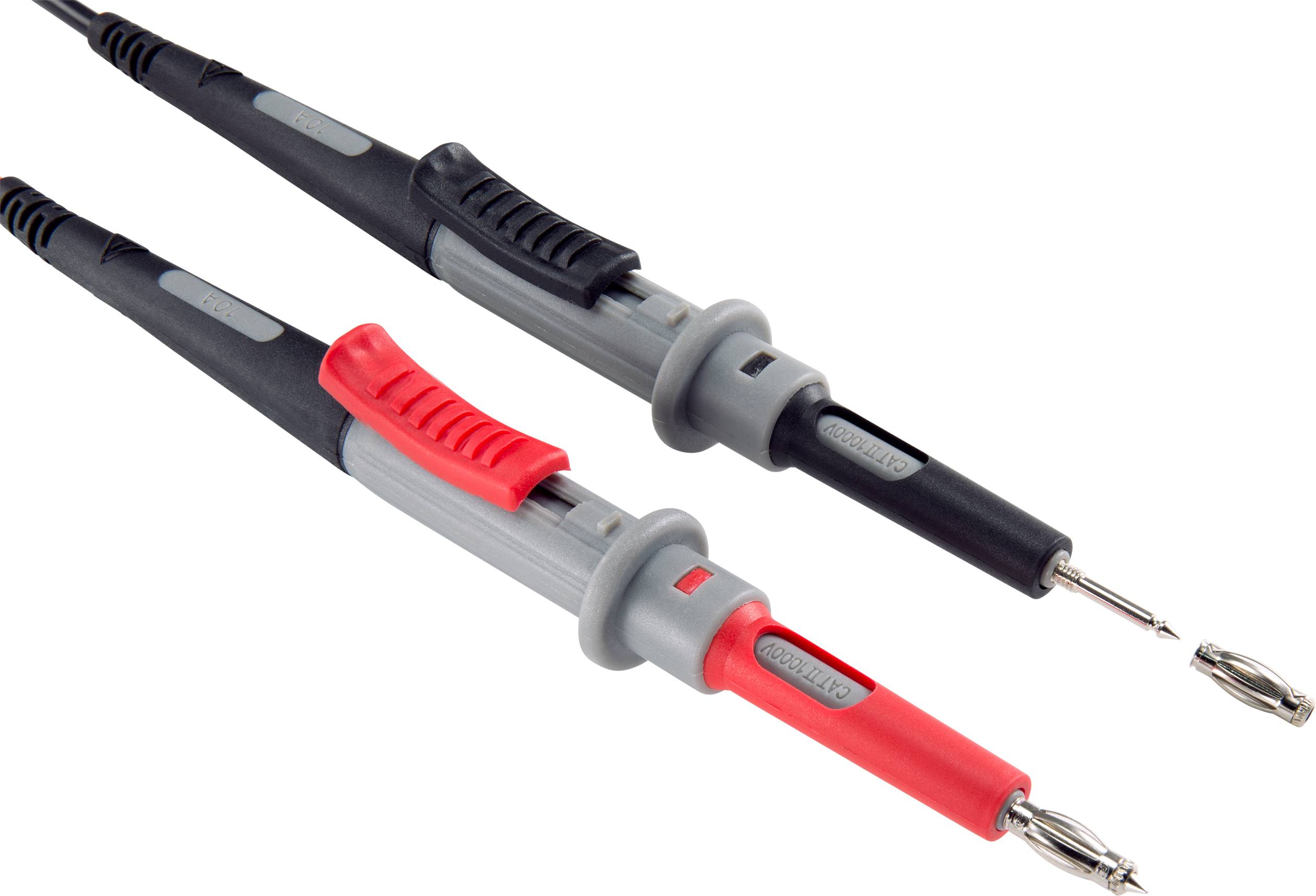

Two test probes for electrical measuring instruments, one with a red handle, the other with a black handle, on a white background.

1/8

Our service for you

Fast track dispatch on Tue, 29 Sep

379 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 26.88 / piece)

€ 26.88

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT MS-4PS-E Safety Test Lead

Push-button adjustable probe tip
for CAT II 1000 V or CAT III 1000 V/CAT IV 600 V tasks
Stackable 4 mm spring-cage plug on the measuring tip
2 mm probe tip
Flexible silicone leads, length: 1 m
Conform with EN 61010-031

Technical specifications

Product type: Safety test lead

Type A: 4 mm safety plug

Type B: Test probe

Cable length: 1.00 m

Factory colour: Black
Red

Plug features: Angled

Material: PP

Cable cross section: 0.97 mm

Nominal voltage: 1000 V

Diameter/connectortype: 4 mm

Temperature range: 0 ~ 40 °C

Nominal current: 10 A

Nominal current - rounded value: 10 A

Contact material: Brass

Reading category: CAT III 1000 V
CAT IV 600 V

Width: 19.4 mm

Height: 176 mm

Type: MS-4PS-E

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2205119 VOLTCRAFT MS-4PS-E Safety test lead 4 mm safety plug Test probe 1.00 m Black, Red 1 pc(s)

Warranty Terms

Warranty Terms 2205119 VOLTCRAFT MS-4PS-E Safety test lead 4 mm safety plug Test probe 1.00 m Black, Red 1 pc(s)

Description

MS-4PS-E shrouded safety test leads are suitable for use in CAT II, CAT III, and CAT IV environments, complying with the latest electrical safety requirements. Double injection, push buttons and silicone sheath ensure user safety and provide a good grip. Compatible with most multimeters, ideal as replacement leads.
