Buy 226009 Softing CTK5015 Networks

'CableTool' device for measuring cable lengths and types. On the left, a large display with buttons, on the right a smaller handheld sensor.

Digital cable testing device with LCD screen displays cable length as 11.12 feet. Two measuring leads are connected.

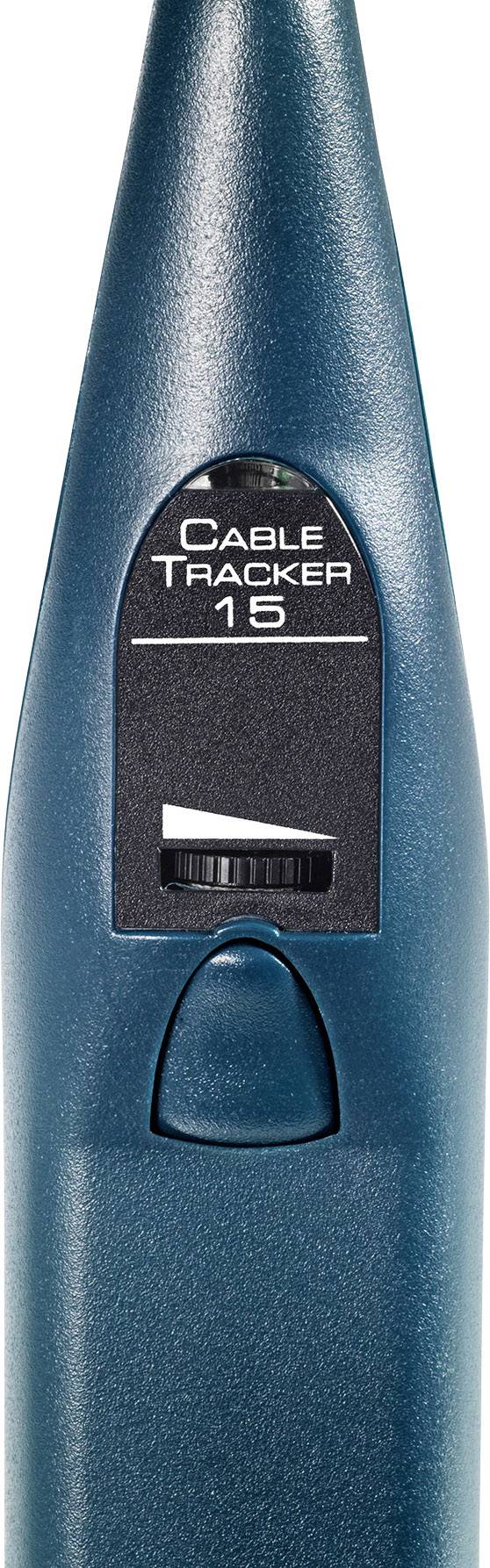

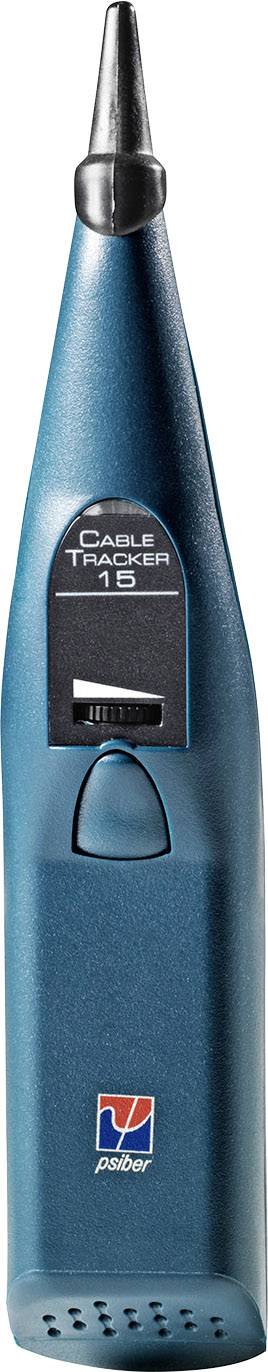

A blue device with the inscription 'Cable Tracker 15', a rotary knob and a lens switch for tracing cables.

1/4

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 511.76 / piece)

€ 511.76

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

CableTool - multi-function cable tester with TDR length measurement

Technical specifications

CT 50: 122 x 32 pixels
CT 15: Frequency range broadband 100Hz-10kHz
Operating temperature range 0 to 50 C.
Storage temperature -10 to 55 C.

Function: Cable tracking

Max. cable length: 700 m

Acoustic signal: Yes

Display: LCD

Optical display: Yes

Test sockets: Jack plug

Dim: (L x W x H) 178 x 81 x 36 mm

Weight: 247 g

Range: Networks

Features: Inductive receiver

Width: 81 mm

Height: 36 mm

Length: 178 mm

Type: CTK5015

Power supply (details): 4 x AA battery

Documents & Downloads

Datasheet

Datasheet 101464 226009 Softing CTK5015 Networks

User & Safety Instructions

User & Safety Instructions 101464 226009 Softing CTK5015 Networks

Description

The "CableTool" determines the length of all copper cable types: Network and telephone cables, coaxial cables as well as conventional power cables can be measured with the in-built, full TDR (time domain reflectometer) for length or distance up to a fault point such as pinched cables, breaks or short-circuits. With the voltmeter function you can determine active lines. In addition, the CableTool has a tone generator for localising cables. With the optional CableTracker probe, the cable routing in cable channels and under plaster can be located clearly.
