Buy VOLTCRAFT DSO-2104 Digital 100 MHz 4-channel 1 GS/s 80 KP 8 Bit Digital storage (DSO) 1 pc(s)

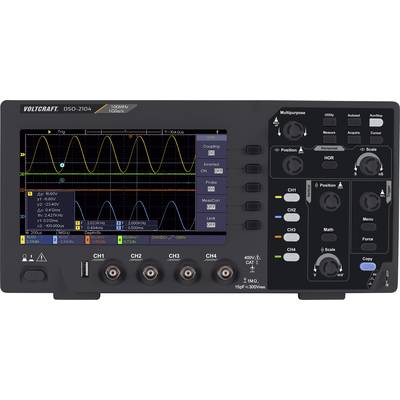

An oscilloscope display shows waveform diagrams in multiple colours, with axis labels and data in MHz. On the left, four input channels.

Oscilloscope with a seven-inch screen displaying two yellow and blue sine waves. Control buttons and connections on the front panel.

'Rear side of a Voltcraft device with ventilation slots and safety warning notices, including use only by qualified personnel.'

A blender viewed from the side with multiple control buttons. The appliance appears compact and functional, suitable for mixing.

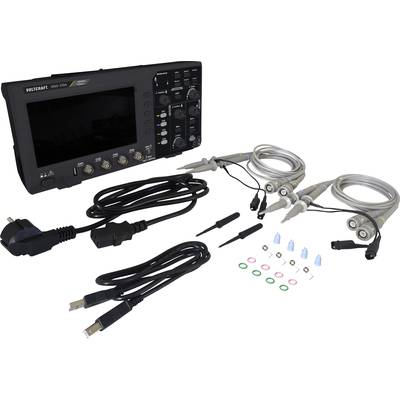

An oscilloscope with accessories. Visible are the main device with multiple connection cables, test probes, a mains cable, and small coloured markings.

Electronic oscilloscope with digital display and control buttons. Measurement probe with cable is connected. Device for signal monitoring.

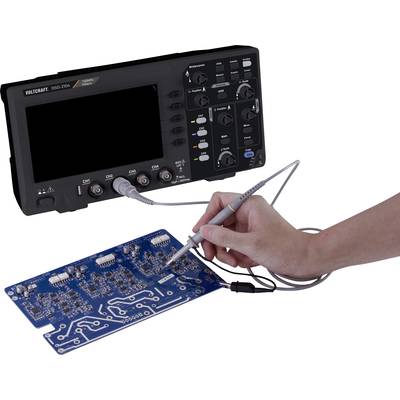

A digital oscilloscope measures signals on a blue circuit board. A hand is holding a probe connected to the circuit.

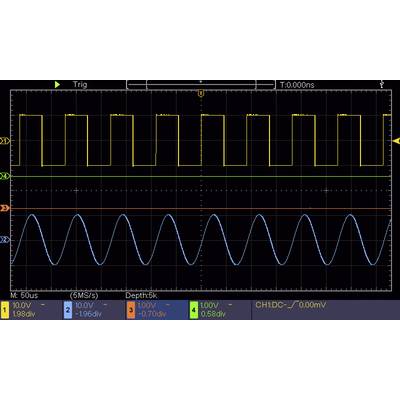

Oscilloscope display showing two signals: Yellow rectangular wave signal at the top and blue sine wave signal below, with axis markings.

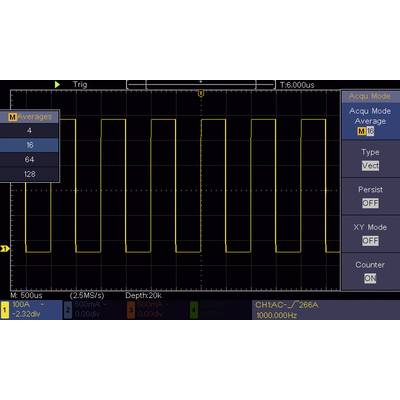

An oscilloscope display shows a rectangular signal with equal high and low phases. The values on the left-hand side are selection options for averaging.

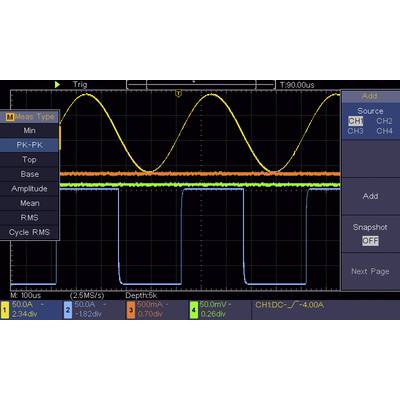

'Oscilloscope view with four waveforms. Yellow, green, blue, orange curves show voltage and current profiles. Menu with measurement parameter selection on the left.'

VOLTCRAFT DSO-2104 Digital 100 MHz 4-channel 1 GS/s 80 KP 8 Bit Digital storage (DSO) 1 pc(s)-10

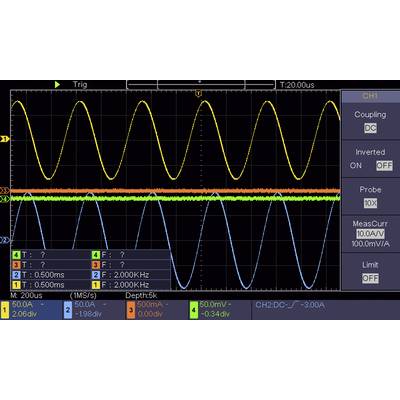

An oscilloscope display shows five sinusoidal signals represented in different colours: yellow, green, red, blue, and cyan. The horizontal time axis and vertical voltage axis are visible.

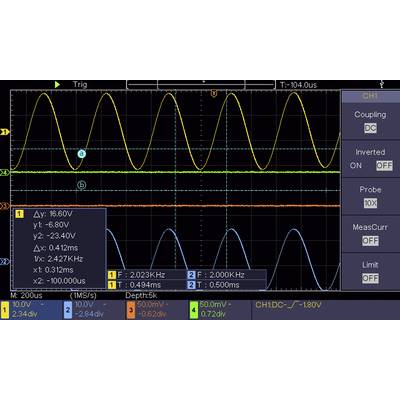

'Oscilloscope screen shows two sine waves in different colours and amplitudes. Frequencies: 2.023 kHz and 2.000 kHz. Delta Y value: 16.60 V.'

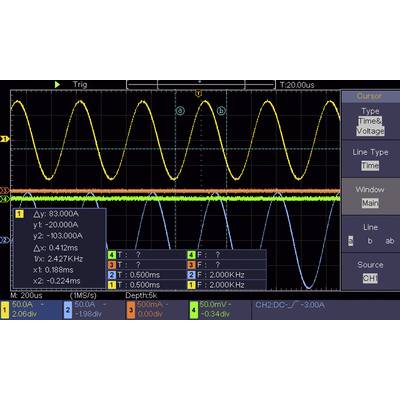

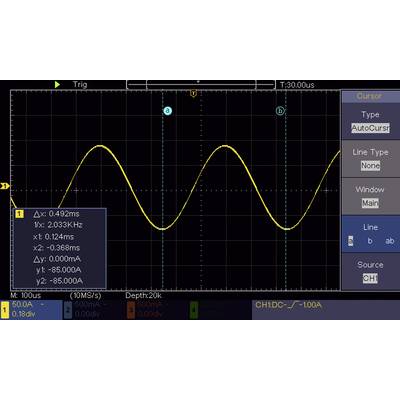

'Oscilloscope screen shows multiple signal waveforms with differential measurements in the time domain and voltage values.'

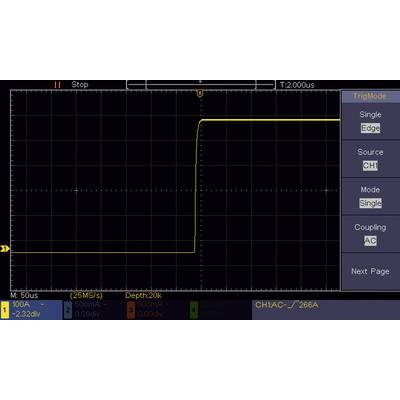

'Oscilloscope display shows a yellow voltage curve with a rapid rise at 50 microseconds. Trigger mode: Single.'

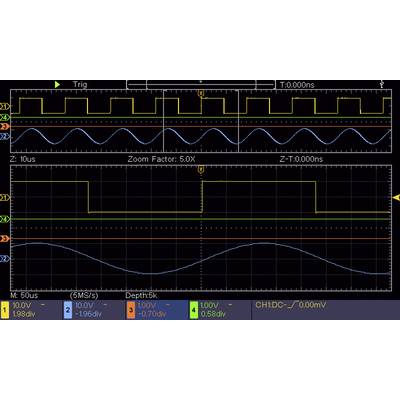

'Oscilloscope image: Rectangular waves above, sine wave below. Time and voltage axes show signal progression. Zoom factor 5X.'

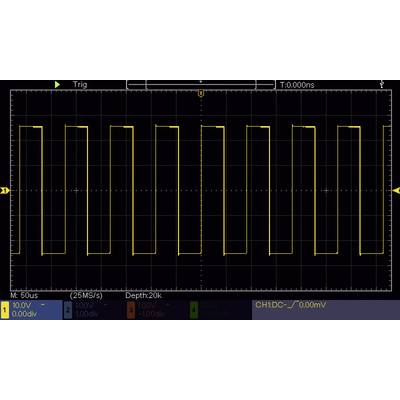

Image of an oscilloscope screen with a uniform rectangular waveform at a constant level. Time axis shows 5 µs.

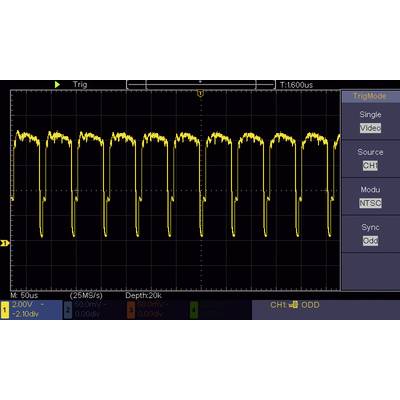

'Oscilloscope screen shows NTSC video signal. Yellow waveform displays periodic pulses with synchronised peaks. Axis: 2.00V/Div, 50.0µs/Div.'

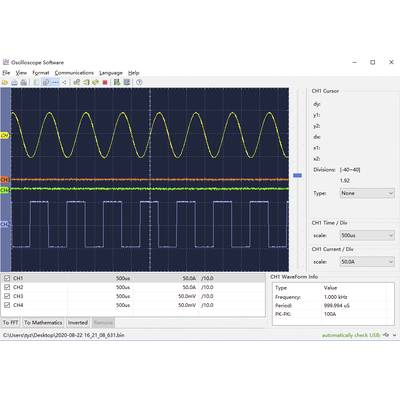

'Oscilloscope software display with three waveforms: Yellow sine wave, green constant line, blue square wave. Measurement values on the right.'

1/19

Our service for you

Sales and shipping:

Number

Piece(s)

Total (€ 234.45 / piece)

€

Report legal concerns

Highlights & Details

VOLTCRAFT DSO-2104 Digital Oscilloscope

100 MHz bandwidth, 4 channels
17.78 cm (7 inch) LCD touch screen (800 x 480 pixels)
USB interface
1 GS/s maximum sampling rate
8 bits vertical resolution
80 K record length

Technical specifications

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Displays: color LCD, 7 inch, touch screen

Resolution: 8 Bit

Screen size: 17.78 cm

Oscilloscope features: Digital storage (DSO)

Time base: 2ns/div - 1000s/div, step by 1 - 2 - 5

No. of analogue inputs: 4

: Manufacturer's standards (no certificate)

Reading category: CAT II 400 V

Vertical deflection: 5mV/div - 5V/div (at input)

Input impedance: 1 MΩ ± 2 %, in parallel mit 20 pF ±5 pF

Input coupling: AC, DC, ground

Input voltage: 400V (PK - PK) (DC+AC, PK - PK)

Power supply (details): 100 - 240 VAC RMS, 50/60 Hz

Dim: (L x W x H) 301 x 152 x 70 mm

Weight: 1.1 kg

Display: 800 x 480 p

Width: 152 mm

Height: 70 mm

Length: 301 mm

Interfaces: 1x USB 2.0 (device)

Channel memory depth: 80 KP

Type: DSO-2104

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2307979 VOLTCRAFT DSO-2104 Digital 100 MHz 4-channel 1 GS/s 80 KP 8 Bit Digital storage (DSO) 1 pc(s)

Warranty Terms

Warranty Terms 2307979 VOLTCRAFT DSO-2104 Digital 100 MHz 4-channel 1 GS/s 80 KP 8 Bit Digital storage (DSO) 1 pc(s)

Download

Download 2307979 VOLTCRAFT DSO-2104 Digital 100 MHz 4-channel 1 GS/s 80 KP 8 Bit Digital storage (DSO) 1 pc(s)

Description

Indispensable aid in voltage processes
The Voltcraft DSO-2104 digital oscilloscope has a bandwidth of 100 MHz, 4 channels and a 7" (17.78 cm) LCD monitor. The maximum sampling rate is 1 GS/s, the recording capacity is 80 K. In addition, several trigger types as well as a frequency counting function are available.
The Voltcraft DSO-2104 works with 8 bit vertical resolution and is able to store 16 signal curves that can be displayed on the PC in real time. The USB connection is also used for data storage.
The scope of delivery includes four probes with pen for probe adjustment. In addition, the Voltcraft DSO-2104 with less than 15 W power consumption impresses with its low power consumption.

This text is machine translated.

Features

16 waveform storage
Displays real-time waveform on PC
Multiple trigger types
With frequency counter
Low power consumption (< 15 W)

Scope of delivery

Oscilloscope
Power cord
4x probes
USB cable
Probe adjustment tool
Software + English manual on CD
Safety hint sheet
Quick guide

System requirements

Windows Vista, 7, 8, 8.1, 10 (32 / 64 bit)
