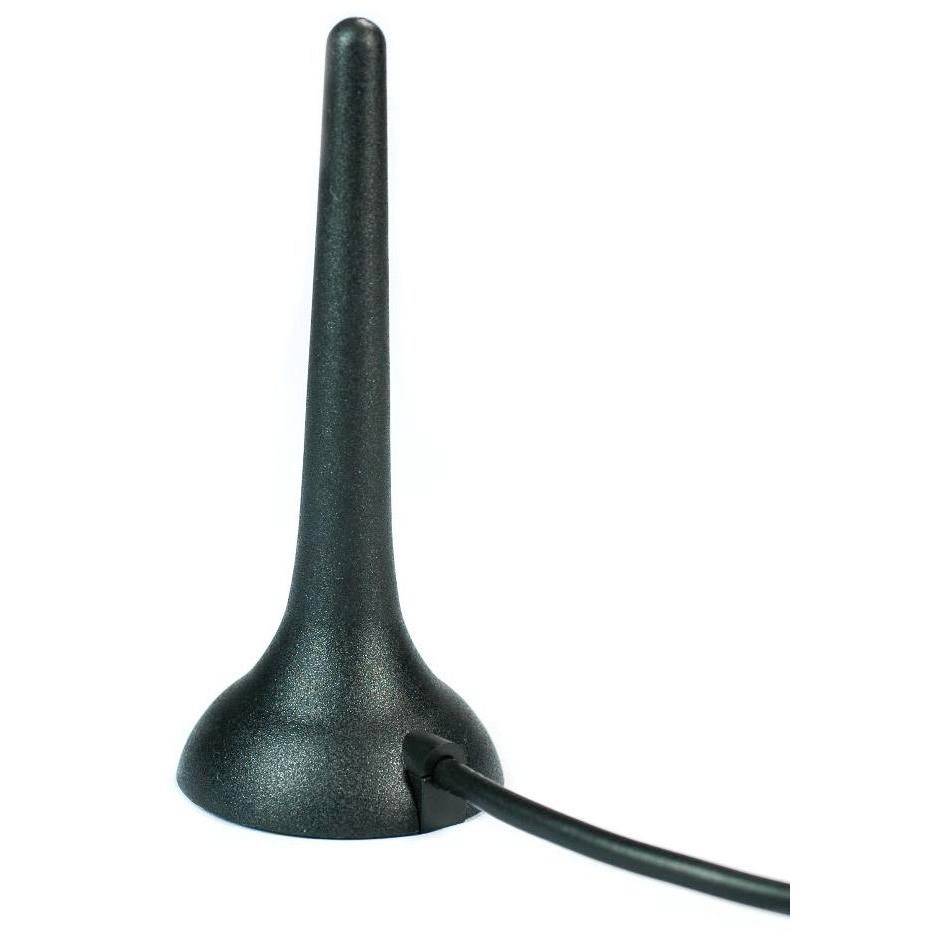

2J 2J3704M-250LL100-C20NST GSM antenna
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Technical specifications
- Polarization: Vertical
- Connector type: SMA Male
- Cable type: RG174
- Frequency: 850MHz|900MHz|1800MHz|1900MHz|2.1GHz
- Series: 2J370
- Mounting: Magnetic Mount
- Technology: AMPS|2G (GSM)|DCS|PCS|3G (UMTS)
- Single / Combination: Single
- Internal / External: External
- Product type
GSM antenna
- Length
30.00 mm
- Width
30.90 mm
- Height
71.50 mm
- Dim
(L x W x H) 30.00 x 30.90 x 71.50 mm
- Antenna socket
SMA plug
- Cable length
2.50 m
- Cable type
RG174
- Engineering Series Name
2J370
- Impedance
50 Ω
- Polarisation
Vertical
- Radio frequency
850MHz|900MHz|1800MHz|1900MHz|2.1 GHz
- Gain
2.20 dB
- Fitting type (details)
Magnetic Mount
Documents & Downloads
Datasheet
Datasheet 3829561 2J 2J3704M-250LL100-C20NST GSM antenna
User & Safety Instructions
User & Safety Instructions 3829561 2J 2J3704M-250LL100-C20NST GSM antenna
Description
2J3704M-250LL100-C20NST ;GSM Antenna RG174U 2,5m SMA M Ni
