Small black wired electronic sensor or receiver with a gray top and triangle mark on a white background.

Small black wired electronic sensor or receiver with a gray top and triangle mark on a white background.

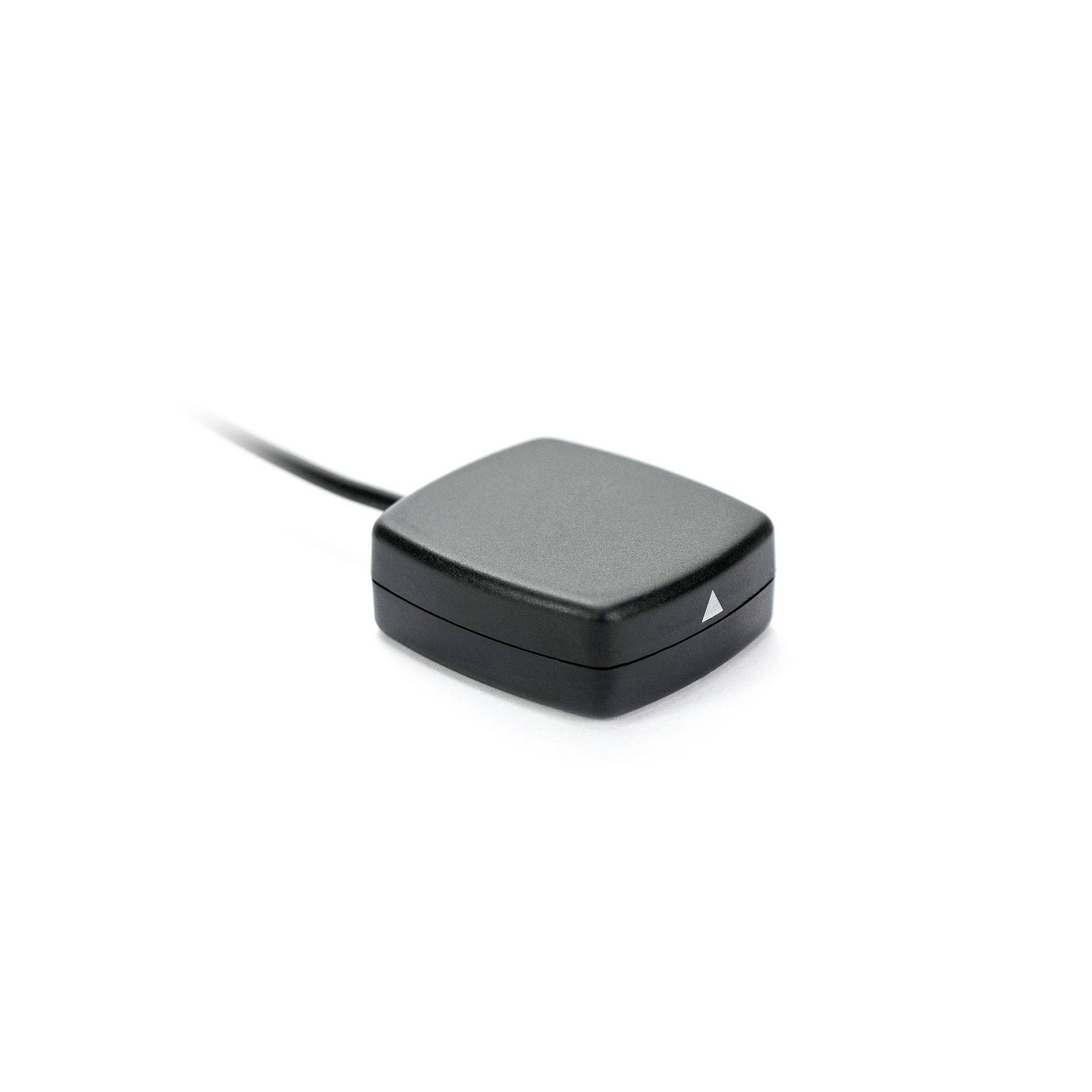

Small black wired GPS receiver puck with a cable and a white directional arrow on top, shown on a white background.

1/2

Datasheet (PDF)

European union

Dispatches on Thu, 22 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Polarization: RHCP
Connector type: SMA Male
Cable type: LL100
Frequency: 1561.098MHz|1575.42MHz|1598-1606MHz
Note: IP67
Series: 2J4D0
Mounting: Adhesive Mount|Magnetic Mount
Technology: BeiDou (Compass)|GPS|QZSS|Galileo
Single / Combination: Single
Internal / External: External

Product type: GPS antenna

Length: 41.00 mm

Width: 34.00 mm

Height: 13.50 mm

Dim: (L x W x H) 41.00 x 34.00 x 13.50 mm

Antenna socket: SMA plug

Cable length: 3.00 m

Engineering Series Name: 2J4D0

Impedance: 50 Ω

Polarisation: RHCP

Radio frequency: 1561.098MHz|1575.42MHz|1598-1606 MHz

Gain: 28.00 dB

Fitting type (details): Adhesive Mount|Magnetic Mount

Documents & Downloads

Datasheet

European union

Datasheet 3829615 2J 2J4D01MPCF-300LL100-C20GST GPS antenna

User & Safety Instructions

User & Safety Instructions 3829615 2J 2J4D01MPCF-300LL100-C20GST GPS antenna

Description

2J4D01MPCF-300LL100-C20GST ;GPS/GLONASS/BeiDou Antenna LL100 3m SMA M Au + Shrink Tube

Hints

IP67
