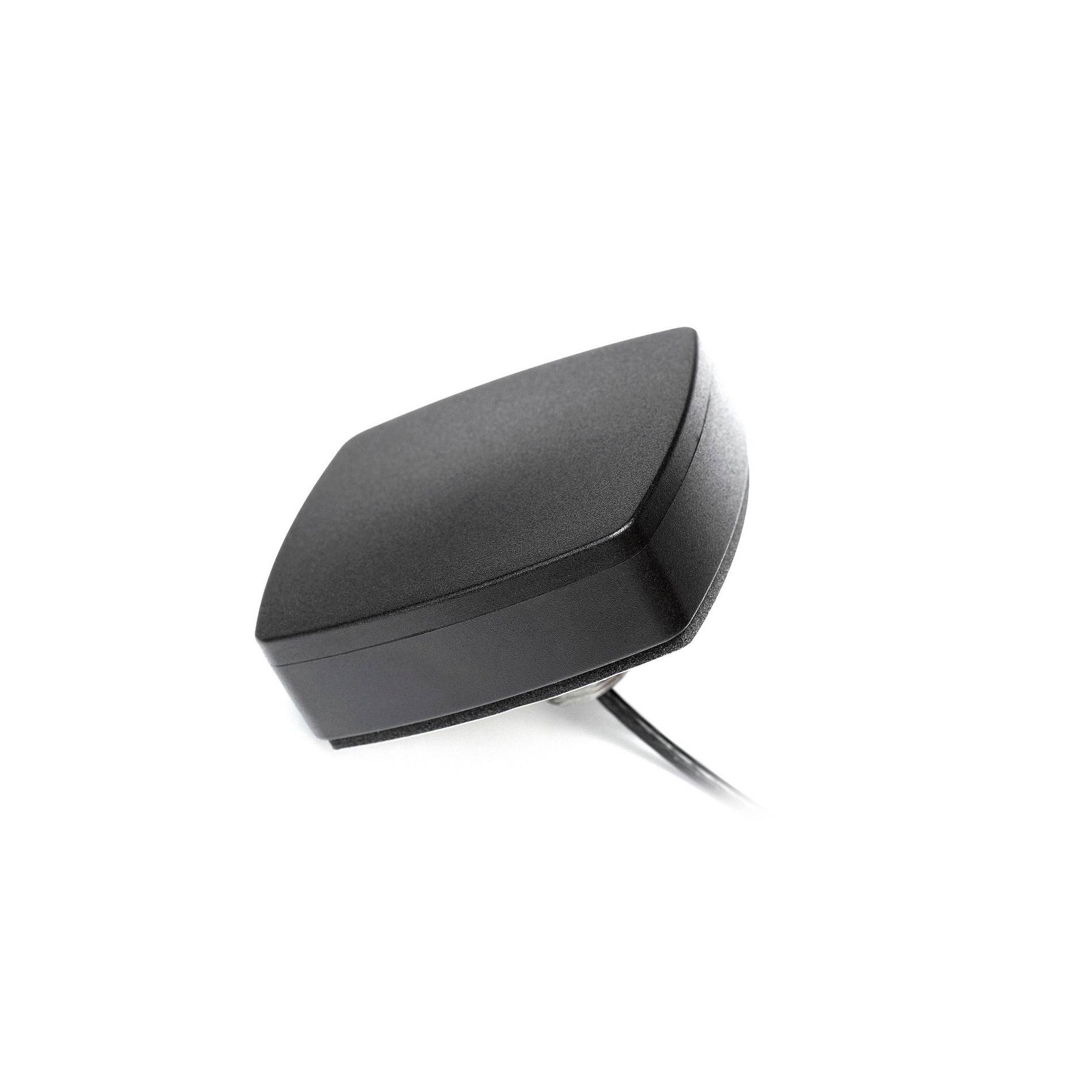

2J 2J6901BC3F-300LL100-C20NST GPS antenna
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Technical specifications
- Polarization: RHCP
- Connector type: SMA Male
- Cable type: LL100
- Frequency: 1176.45MHz|1561.09MHz|1575.42MHz|1602MHz
- Note: IP67|IP69
- Series: 2J690
- Mounting: Screw Mount
- Technology: GPS|Glonass|BeiDou (Compass)|QZSS|Galileo|IRNSS|SBAS|L1L5
- Single / Combination: Single
- Internal / External: External
- Product type
GPS antenna
- Length
80.00 mm
- Width
74.00 mm
- Height
25.60 mm
- Dim
(L x W x H) 80.00 x 74.00 x 25.60 mm
- Antenna socket
SMA plug
- Cable length
3.00 m
- Engineering Series Name
2J690
- Impedance
50 Ω
- Polarisation
RHCP
- Radio frequency
1176.45MHz|1561.09MHz|1575.42MHz|1602 MHz
- Gain
28.00 dB
- Fitting type (details)
Screw Mount
Documents & Downloads
Datasheet
Datasheet 3829620 2J 2J6901BC3F-300LL100-C20NST GPS antenna
User & Safety Instructions
User & Safety Instructions 3829620 2J 2J6901BC3F-300LL100-C20NST GPS antenna
Description
2J6901BC3F-300LL100-C20NST ;GPS/GLONASS/QZSS/IRNSS/SBAS/L1/L5 "Phantom" Antenna LL100 3m SMA M Ni + Shrink Tube
Hints
IP67|IP69
