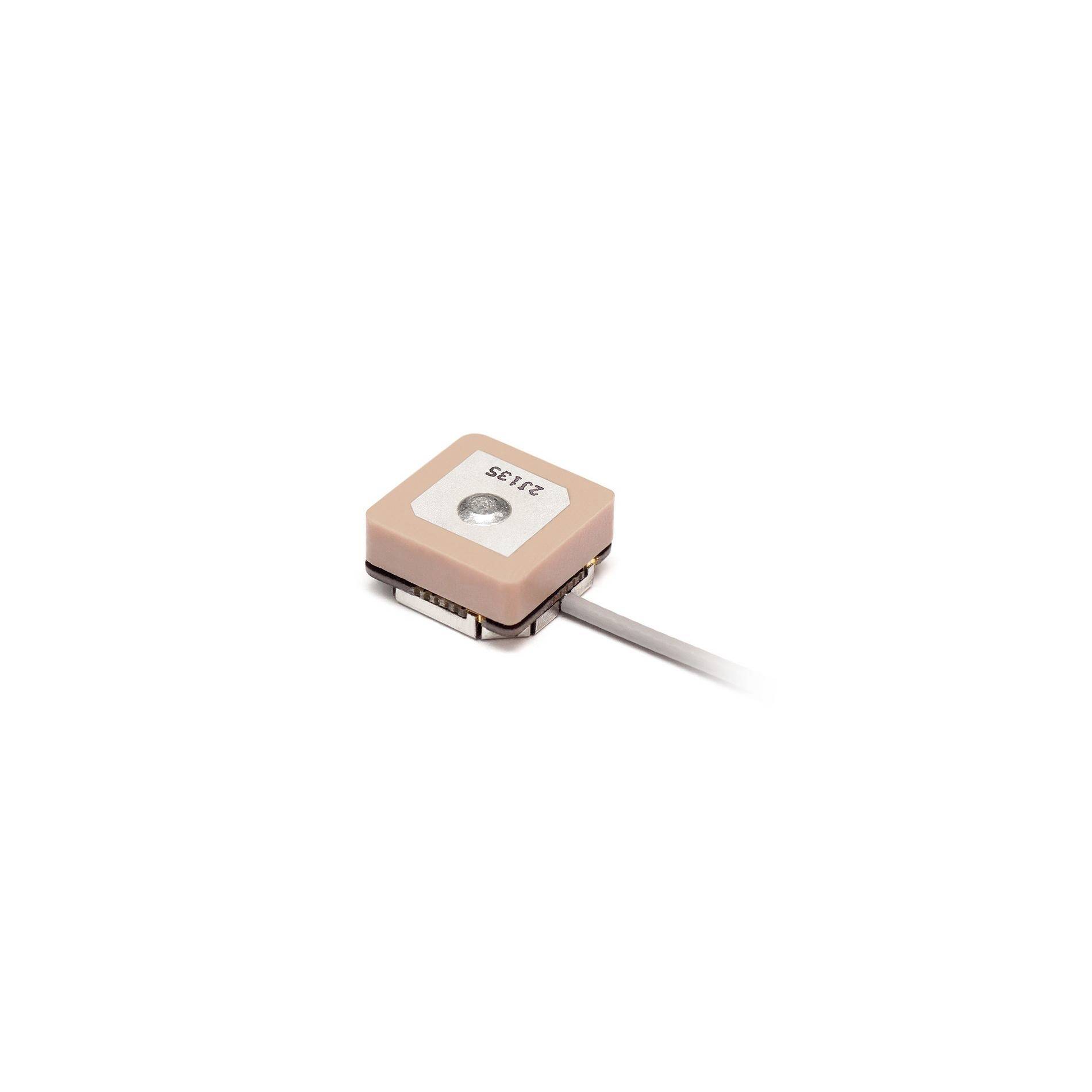

Small square GPS module with attached cable, labeled '2135', shown on a white background.

Small square GPS module with attached cable, labeled '2135', shown on a white background.

Small square electronic component with a cable attached, shown on a white background.

1/2

Datasheet (PDF)

European union

Dispatches on Thu, 22 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 7.13 / piece)

€ 7.13

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Connector type: U.FL (IPEX-1)
Cable type: Microcoax 1,37mm
Frequency: 1575.42MHz|1598-1606MHz
Series: 2JM18
Mounting: Embedded
Technology: GPS|QZSS|Galileo|Glonass
Single / Combination: Single
Internal / External: Internal

Product type: GPS antenna

Length: 13.00 mm

Width: 13.00 mm

Height: 6.60 mm

Dim: (L x W x H) 13.00 x 13.00 x 6.60 mm

Cable length: 0.10 m

Engineering Series Name: 2JM18

Impedance: 50 Ω

Radio frequency: 1575.42MHz|1598-1606 MHz

Gain: 14.00 dB

Fitting type (details): Embedded

Documents & Downloads

Datasheet

European union

Datasheet 3829639 2J 2JM1801GF-010MC137-UFL GPS antenna

User & Safety Instructions

User & Safety Instructions 3829639 2J 2JM1801GF-010MC137-UFL GPS antenna

Description

2JM1801GF-010MC137-UFL ;GPS/GLONASS/Galileo "Active Patch" Antenna Microcoax 1,37mm 0,1m U.FL
