2N Telecommunications 91378501WH Door phone LAN White
EAN:
Part number:
Item no:
Technical specifications
- Product type
Door phone
- Transfer type
LAN
- Surface mounting
Yes
- Operating voltage
12 V
- Power supply (LOV)
via DC in
- Factory colour
White
- Display type
Touch display
- Width
152.0000 mm
- Height
153.0000 mm
- Mounting type (outdoor)
Wall
- Mounting type (interior)
Wall
- Dim
(W x H) 152.0000 mm x 153.0000 mm
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2268363 2N Telecommunications 91378501WH Door phone LAN White
Description

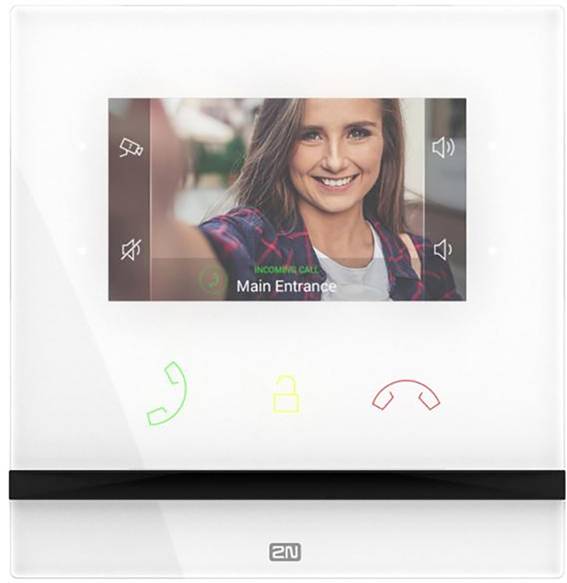

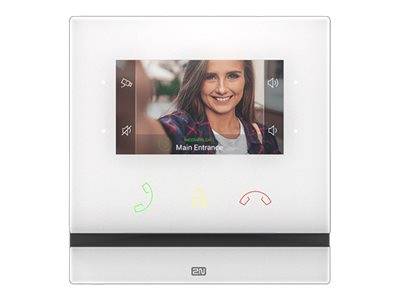

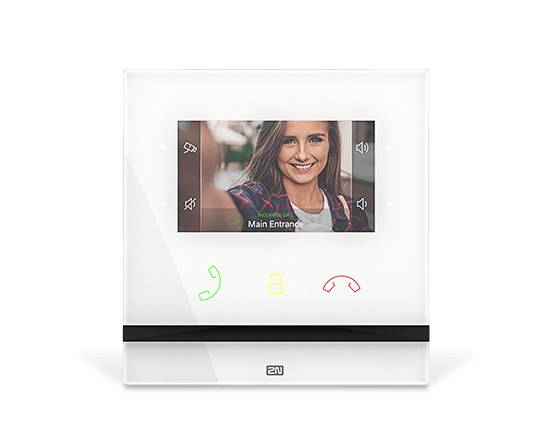

2N Indoor Compact IP Intercom
2N Indoor Compact is a intercom system designed specifically for the real estate sector for indoor use. Installation by connecting a single UTP cable and configuring it using the Web interface ensures quick and convenient commissioning for each integrator. The user is impressed by the minimalist design, the surface made of hardened glass, the 4.3" color display and the intuitive control. A simple and elegant solution for video communication.
Intuitive control even for inexperienced users
accepting calls, opening the door, displaying missed calls or switching on silent operation has never been easier. The large, color-lit keys contribute to faster orientation and simple control.
Design surface made of hardened glass
the 3 mm thick cover glass is hardened in a 420 °C hot salt bath, which ensures maximum resistance of this unit to scratches and shocks during daily household use.
Configuration using the Web interface
Setting all installed devices, creating the address book, and upgrading firmware can be done using the Web interface, both from the local network and remotely using the 2N Remote Configuration service.
Connecting the unit in a few seconds
using the structured cabling typical of today's houses makes it possible to literally insert the 2N® Indoor Compact unit into the system. The power supply via PoE and the communication is established in a few steps.
HD-quality sound with noise suppression
2N® Indoor Compact provides a perfect experience when communicating with visitors. It works with the HD Audio Codec G.722, a unique loudspeaker output and system for suppressing ambient noise.
Switching the video from the internal and external camera
If a call is answered with the 2N Indoor Compact unit, the camera of the call station can be switched to the video from the external IP camera at the input. Make sure that the house is only entered by the person you have entered.

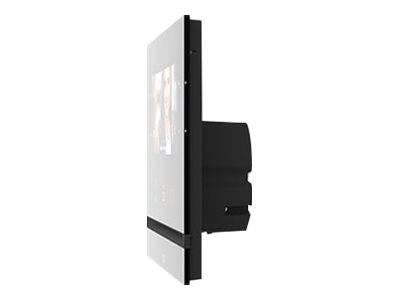

Special flush-mounted socket (not included in the delivery)
The flush-mounted socket for 2N indoor speech units enables even with inaccurate masonry to ensure that a horizontal position can be ensured by a slight turning.

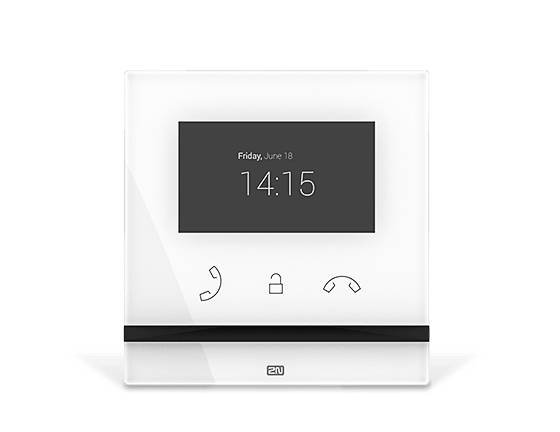

Display of the date and time in the sleep mode
2N Indoor Compact helps in controlling the time in the household. Clocks can also be set after the current date and time on the 4.3" color display.
Simply safe with 2N
2N is a leading European company in the development and manufacture of information and communication technology and security products. It is the world leader in IP intercom systems. All products comply with strict international standards and are compatible with third-party systems. The 2N product lines include IP intercom systems for door communication and emergency calls, IP audio systems and M2M products designed to make life easier and safer. In 2016, 2N was taken over by the Axis Group.
