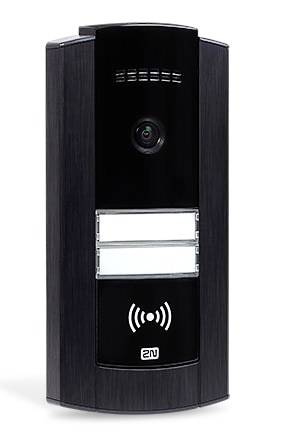

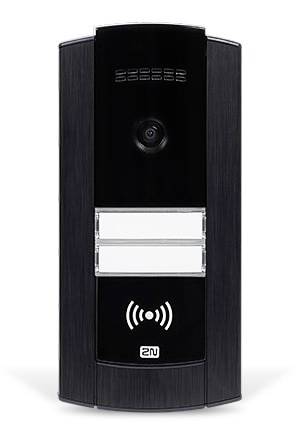

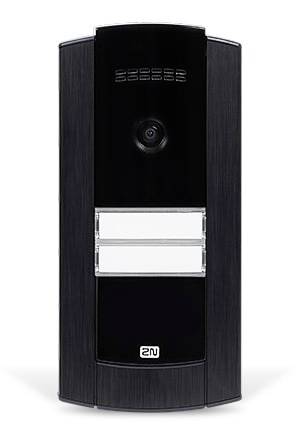

2N Telecommunications 9156111CB Video access system Black
EAN:
Part number:
Item no:
Highlights & Details
2N Telecommunications 9156111CB Video access system Black
- Wired & wireless outdoors
- Hands-free device In-built loudspeakers
- Maximum Number of cameras supported: 1
- Outdoor unit Power supply: DC
- Black
Technical specifications
- Transmission: Wired & Wireless
- Supported positioning: Vertical
- Product type
Video access system
- Factory colour
Black
- Width
109 mm
- Height
229 mm
- Depth
31 mm
IP65
- Material (details)
Aluminium
- Hor. viewing angle
135°
- Vertical viewing angle
109°
- UKCA
yes
- Number of speakers
1
- Maximum number of cameras supported
1
- Operating temperature (T-T)
-40 - 55 °C
- Speaker power
2 W
- RFID reader
yes
- Speakerphone
yes
- Built-in speaker(s)
yes
- Power over Ethernet (PoE)
yes
- Outdoor unit included
yes
- Night vision
no
- Power consumption
400 mA
- Operating relative humidity (H-H)
10 - 95 %
- Storage temperature (T-T)
-40 - 70 °C
- Maximum image resolution
1280 x 960 p
- Number of buttons
2 Buttons
- Backlight buttons
yes
- Motion sensor
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3802316 2N Telecommunications 9156111CB Video access system Black
Description
The 2N® IP Base is a compact IP intercom system which is very easy and quick to install. It has one or two switches and offers a very high audio and video quality. This is a system which is mainly intended for smaller installations.
SIMPLE IP-DOOR INTERCOM WITH CAMERA
The 2N® IP Base is a stylish door entry system with high-quality basic functions, including audio and video.
VERY EASY INSTALLATION
The installation of the 2N® IP Base door entry system is extremely easy. You save not only time, but also the costs associated with the installation.
RFID-CARD READER
The basic model can be extended with a module with a 125 kHz or 13.56 MHz RFID card reader.
VERY HIGH QUALITY AUDIO AND VIDEO FUNCTION
Due to the integrated HD camera with high resolution and the extended sound processing with echo suppression, the door intercom has a sharp image and is excellent to hear under all conditions.
2N® REMOTE CONFIGURATION
Save time and money with our service, which costs an exit. You get remote access to all devices via a secure cloud connection, the fastest help for your customers.
PROTECTION SWITCH
The door entry system has an integrated circuit breaker (Tamper Switch), which displays an unauthorized penetration into the device.
CONNECTIONS FOR FURTHER ACCESSORIES
The intercom has inputs and outputs prepared for the connection of an electric lock and other equipment.
ONE OR TWO SWITCHES
You can choose to use one or two switches, both versions are included in the package.
RESISTANT ALUMINUM FRAME
The door entry system complies with IP protection class IP65 and IP shock resistance IK7.
This text is machine translated.
SIMPLE IP-DOOR INTERCOM WITH CAMERA
The 2N® IP Base is a stylish door entry system with high-quality basic functions, including audio and video.
VERY EASY INSTALLATION
The installation of the 2N® IP Base door entry system is extremely easy. You save not only time, but also the costs associated with the installation.
RFID-CARD READER
The basic model can be extended with a module with a 125 kHz or 13.56 MHz RFID card reader.
VERY HIGH QUALITY AUDIO AND VIDEO FUNCTION
Due to the integrated HD camera with high resolution and the extended sound processing with echo suppression, the door intercom has a sharp image and is excellent to hear under all conditions.
2N® REMOTE CONFIGURATION
Save time and money with our service, which costs an exit. You get remote access to all devices via a secure cloud connection, the fastest help for your customers.
PROTECTION SWITCH
The door entry system has an integrated circuit breaker (Tamper Switch), which displays an unauthorized penetration into the device.
CONNECTIONS FOR FURTHER ACCESSORIES
The intercom has inputs and outputs prepared for the connection of an electric lock and other equipment.
ONE OR TWO SWITCHES
You can choose to use one or two switches, both versions are included in the package.
RESISTANT ALUMINUM FRAME
The door entry system complies with IP protection class IP65 and IP shock resistance IK7.
This text is machine translated.
Features
- Simple IP-Door intercom with Camera
- Very easy to install
- RFID-card reader
