Image similar
1/2
Image similar
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.28
45
11% = € 0.03
€ 0.25
75
14% = € 0.04
€ 0.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.28 / piece)
€ 0.29
€ 4.20
plus VAT.
14-day return policy included
Highlights & Details

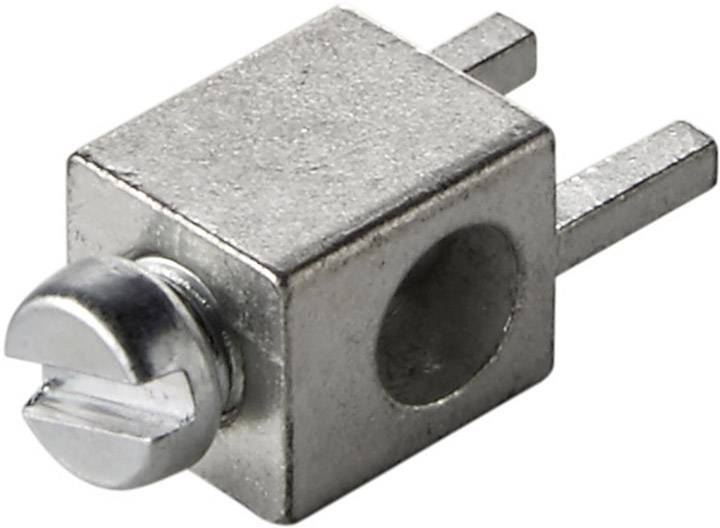

Single terminal with screw connection
- Content 1 pc(s)
Our service for you
Technical specifications

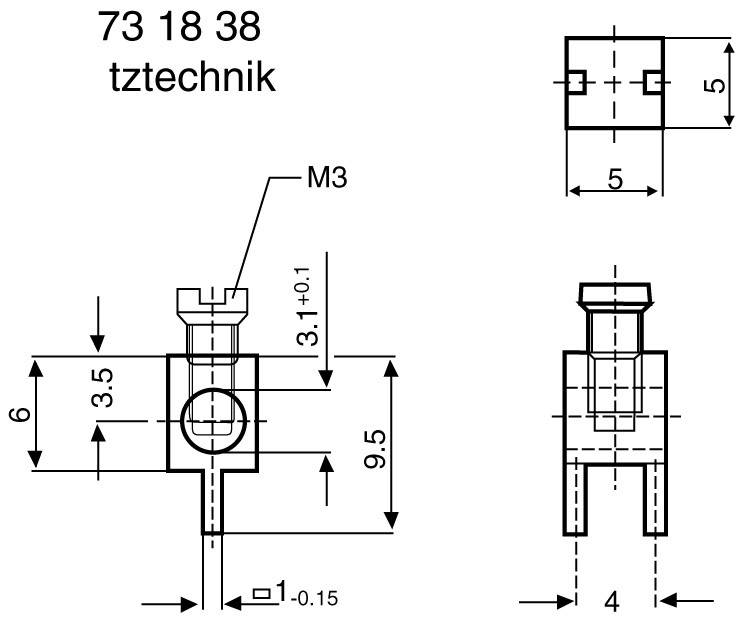

- Solder pin-dim.: 1 mm for double solder pins, recommended PCB boring Ø 1.5 mm
- M3 terminal screws
- Type
360410
- Product type
Single contacts
- CS
4 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Min. stripping length
6 mm
- Stripping length (max.)
6 mm
- Connection
Screw terminal
Print
- Nominal current
16 A
- Cross section (flexible) (min.)
1.5 mm²
- Nominal current - rounded value
16 A
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
15
- Connector orientation
Parallel (to the PCB)
- AWG max.
15
- Contact material
Brass
- Enclosure material
Steel
- Factory colour
Silver
- Wire protection
No
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
360410
- Content
1 pc(s)
- Nominal current (details)
16 A
- Connector cross section
2.5 mm²
- Cross section
2.5 mm²
- Pins
1
- Connection
-
Documents & Downloads
Datasheet
Datasheet 731838 360410 Single contacts 2.5 mm² Number of pins 1 Silver 1 pc(s)
Description
As with multipoint terminal trips, the double-soldered pin provides anti-twist protection.
Features
- Single terminal
- Open design
- Without wire protection
