HellermannTyton 525-13523 HC12-52-PE-CL Badge Fitting type: Cable tie Writing area: 52 x 13 mm Transparent 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.25
10
8% = € 0.10
€ 1.15
25
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.25 / piece)
€
Highlights & Details
HellermannTyton 525-13523 HC12-52-PE-CL Badge Fitting type: Cable tie Writing area: 52 x 13 mm Transparent 1 pc(s)
Technical specifications
- Flame retardant features: conforms UL94 HB
- Fitting type
Cable tie
- Writing area length
52 mm
- Writing area width
13 mm
- Writing area
52 x 13 mm
- Material
Polyethylene (PE)
- Suited for series
Labels
Single wires
Universal usage
- Features
UL94 flammability rating
UV-resistant
Halogen-free
Oil-resistant
Weatherproof
- Min. temperature
-60 °C
- Max. temperature
+65 °C
- Factory colour
Transparent
- Content
1 pc(s)
- Dim
(L x W) 52 mm x 13 mm
- Length
52 mm
- Width
13 mm
- Type
HC12-52-PE-CL
- Material (details)
Polyethylene, UV weather-resistant (PEUV)
- Type
Character holder
- Operating temperature
-60 - +65 °C
- Temperature range
-60 - +65 °C
- RoHS-compliant
Yes
- Product type
Badge
Documents & Downloads
Datasheet
Datasheet 545831 HellermannTyton 525-13523 HC12-52-PE-CL Badge Fitting type: Cable tie Writing area: 52 x 13 mm Transparent 1 pc(s)
Description

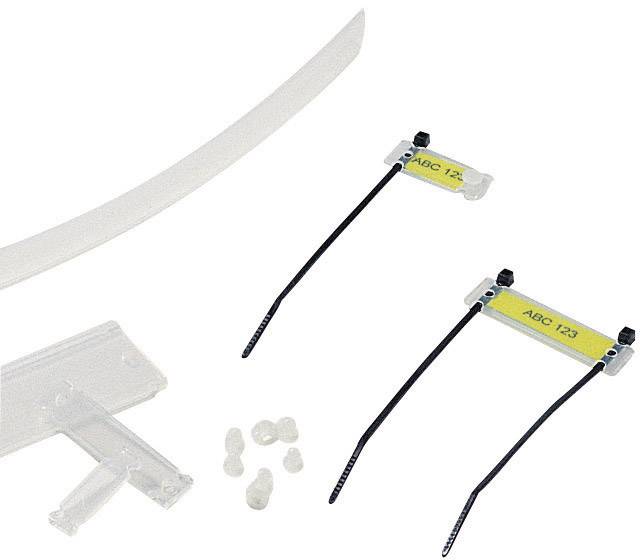

The label holders are suitable for temporary or permanent labelling. It is fastened with T18 series cable ties, screws or rivets. The material and profile protect the inserted label against moisture, soiling, damage and UV rays.
Helafix HC are precut and punched and supplied in a bag.
Helafix HC are precut and punched and supplied in a bag.
Hints
The labelling of cable harnesses, cables, pipes, transport systems, valves, sensors and for inventory labelling on machines or other parts.
