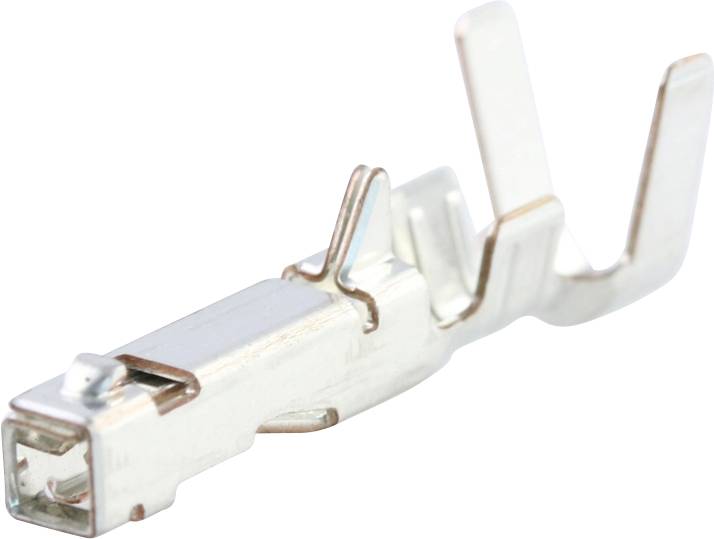

6.5 WtB 505978000 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Crimp contact
Connector type
Socket
AWG
22 - 16
Connection
Crimp
Press-in
Datasheet (PDF)
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Crimp contact
- Connector type
Socket
22 - 16
- Connection
Crimp
Press-in
- Manufacturer part #
505978000
- Content
1 pc(s)
- Contact material
Copper alloy tin plated
- Type
505978000
- Engineering Part No
50597-8000
- Engineering Series Name
CP6.5 WTB/WTW
- Engineering Series No
50597
Documents & Downloads
Datasheet
Datasheet 3036193 6.5 WtB 505978000 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3036193 6.5 WtB 505978000 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 3036193 6.5 WtB 505978000 Molex Content: 1 pc(s)
Description
CP-6.5 Wire-to-Board Crimp Terminal, Female, 16-22 AWG, Reel
