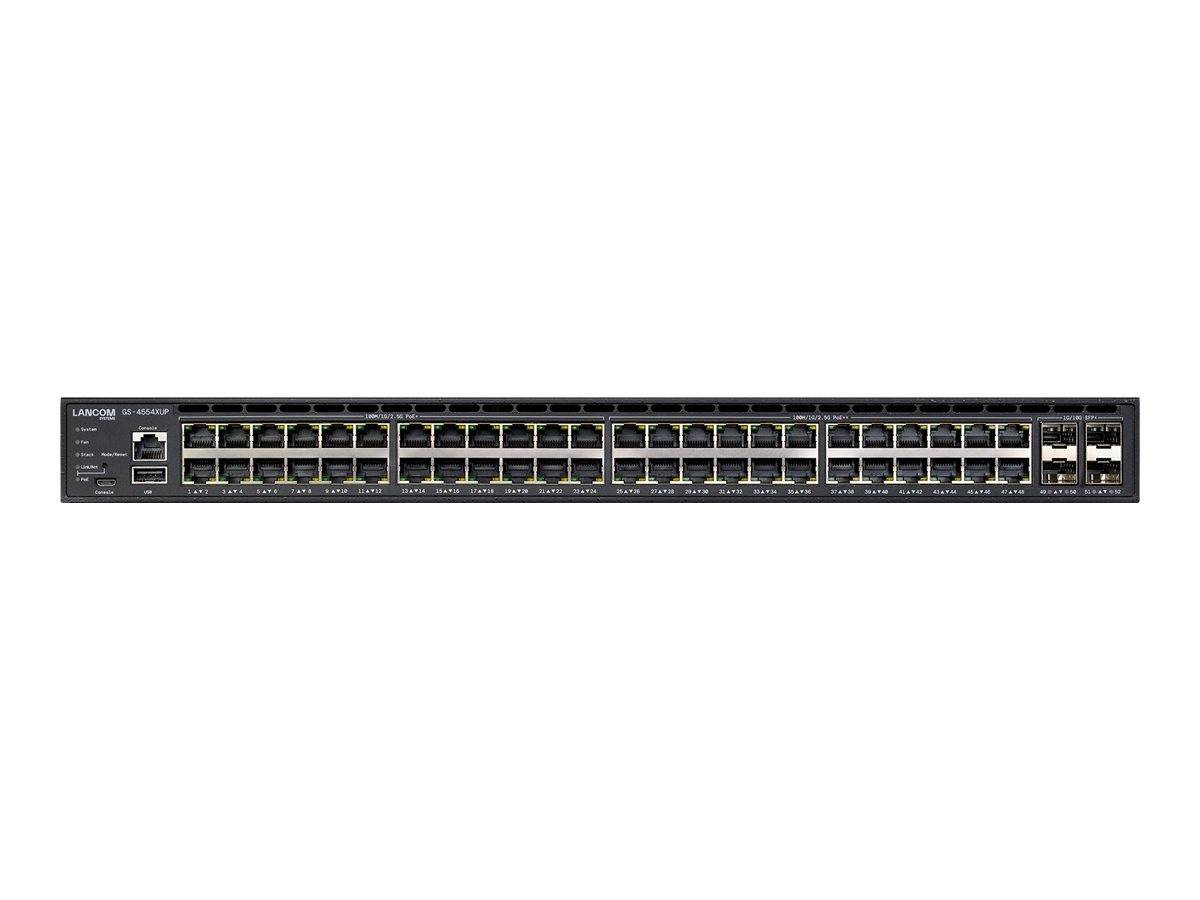

61884 - LANCOM GS-4554XUP switch, L3 managed, 24x 100/1000/2.5G (PoE+)
EAN:
Part number:
Item no:
Highlights & Details
LANCOM GS-4554XUP - switch - L3 - managed - 24 x 100/1000/2.5G (PoE+)
- + 24 x 10/100/1000 (PoE+) + 4 x SFP+ + 2 x QSFP+ - Desktop - mountable to rack - PoE++ (1440 W)
Technical specifications
- WEEE-No.: 45401549
- GPSR: Lancom Systems GmbH, Adenauerstr., 20/B2, 52146, Würselen, Germany, www.lancom-systems.de, info@lancom.de, +49 2405 49936-0
- Product type
Network switch
- LAN transfer rate
2500 MBit/s
- Transfer rate
480 GBit/s
- Working principle
Managed switch
- Ethernet ports
48
- PoE ports
24
- QSFP+ ports
2 x
- SFP+ ports
4 x
- No. of 100 Mbps/1Gbps/10Gbps ports
4 x
- 10/100/1000 Mbps ports
24 x
- Fibre-optic ports
6
- Jumbo frames
Yes
- MAC addresses
32.000
- Weight
9.37 kg
- Width
44.2 cm
- Height
4.4 cm
- Depth
44 cm
- Type
LANCOM Systems
- Interfaces
RJ45
- Factory colour
Multicolour
- Product type description
Switch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739646 61884 - LANCOM GS-4554XUP switch, L3 managed, 24x 100/1000/2.5G (PoE+)
Description
LANCOM GS-4554XUP multimedia technology switches
This text is machine translated.
This text is machine translated.
Features
- LANCOM GS-4554XUP - switch - 48 connections - managed - can be mounted on rack
- Device type: Switch – 48 connections – L3 – managed – stackable
- Enclosure Type : Rack mountable 1U
- Sub-type : 2.5 Gigabit Ethernet
- Ports : 24 x 100/1000/2.5G (PoE++) + 24 x 10/100/1000 (PoE+) + 4 x SFP+ + 2 x QSFP+
- Power over Ethernet (PoE) : PoE+
- PoE budget : 1440 W.
- Power : Throughput: 480 Gbps
- Maximum packet throughput 357 Mpps
- Capacity : Virtual interfaces (VLANs): 4093
- Packed buffer size: 4 MB
- DHCP Pool: 16
- Size of the MAC address table : 32,000 entries
- Jumbo frame support : 12,288 bytes
- Routing Protocol : IGMPv2, IGMP, MLDv2, MLD, MSTP, RSTP
- Remote management protocol : SNMP 1, SNMP 3, SNMP 2c, SSH, ICMP, IPv4, IPv6, TACACS+, RADIUS
- Features : VLAN support, port mirroring, DiffServ support, MAC address filter, IP address filtering, Firmware can be updated, QoS, DHCP server, DHCP relay, port security, cloud managed, metal housing, ToS, 3 fans, Storm control, IP source monitor, voice VLAN, PVE, LANCOM management cloud
- Product certifications : IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.11g, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AB (LLDP), IEEE 802.1AK, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qat, IEEE 802.3u, IEEE 802.1Qav, IEEE 802.3ax, IEEE 802.3bt
- Power supply : AC 100-240 V (50 - 60 Hz)
- Dimensions (width x depth x height): 44.2 cm x 44 cm x 4.4 cm
- Weighs 6.3 kg.
- System Requirements : LCOS SX 5.20
