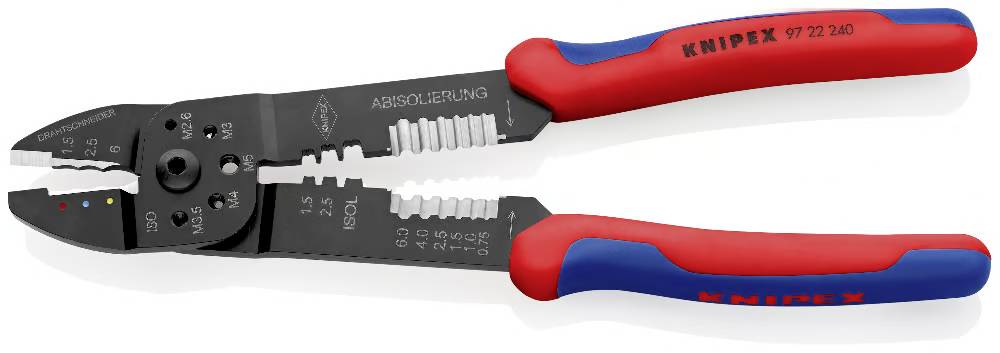

A pair of red and blue-handled Knipex wire strippers showing multiple stripping and cutting options for different wire sizes.

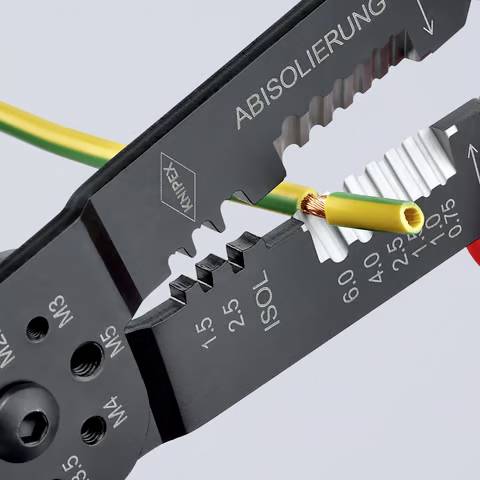

Wire stripper tool in use, removing insulation from a yellow and green cable. The tool's marked measurements guide precision.

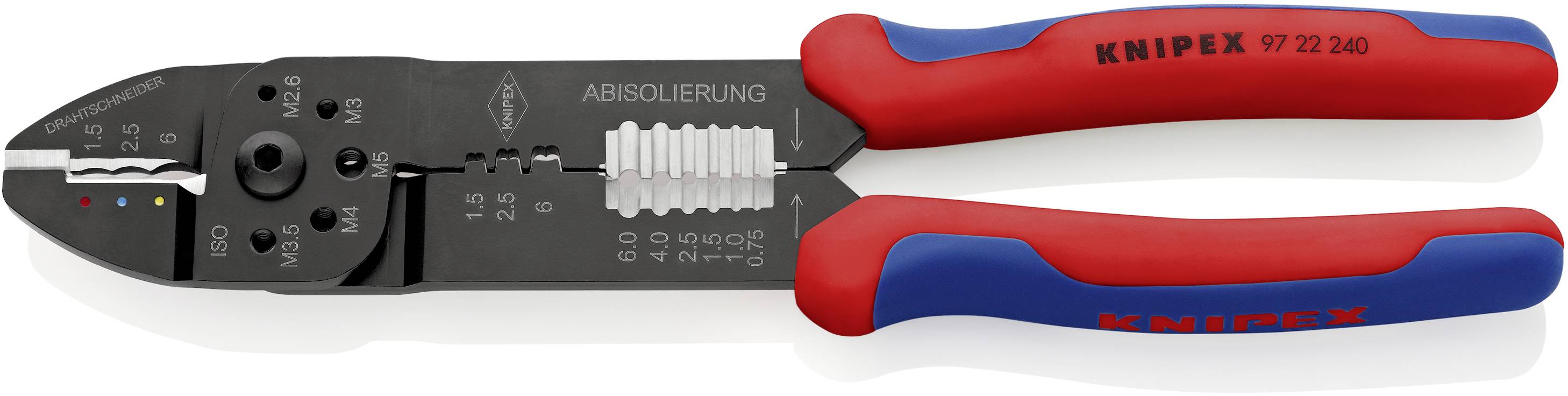

The image shows a red and blue wire stripping pliers by Knipex, model 97 22 240, with various scales for cutting and stripping cables.

A wire stripper tool is clamping onto a blue wire. The tool is marked with text indicating wire gauge settings in millimeters.

A black photographic tool with markings in various ISO values, red, blue, and yellow dots, and a red nozzle.

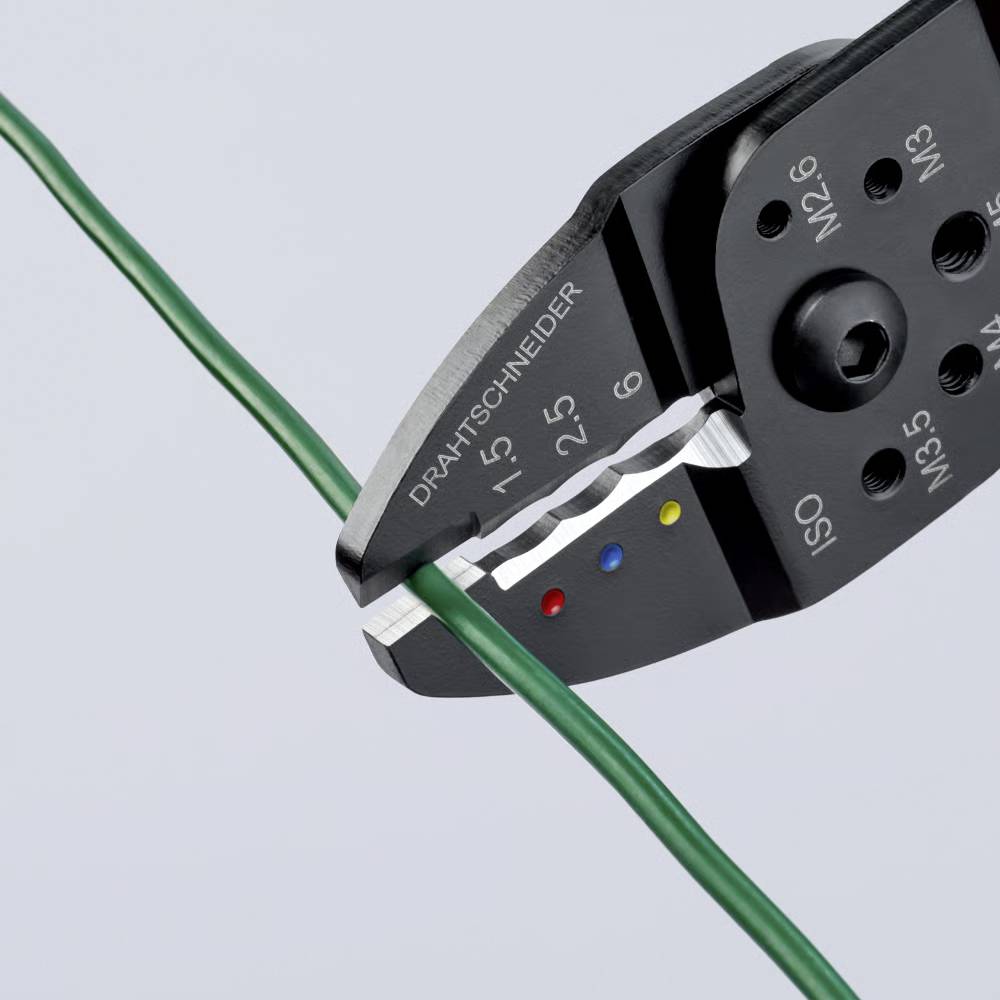

Wire cutter clamping a green wire, showing measurements on the tool.

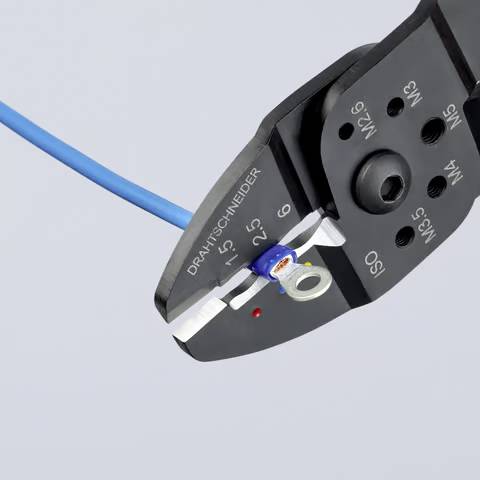

Wire cutter tool showing various hole sizes for stripping different wire gauges, with a blue wire being cut.

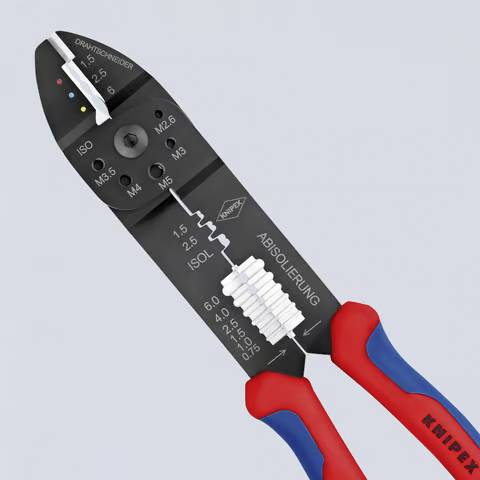

Knipex 97 22 240 Crimper Insulated cable lugs, Insulated connectors 0.75 up to 6 mm²-10

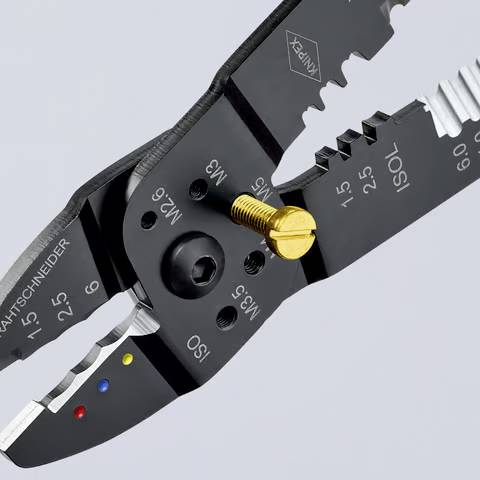

Wire stripping tool with various notches labeled with sizes, showing cutting and stripping capabilities.

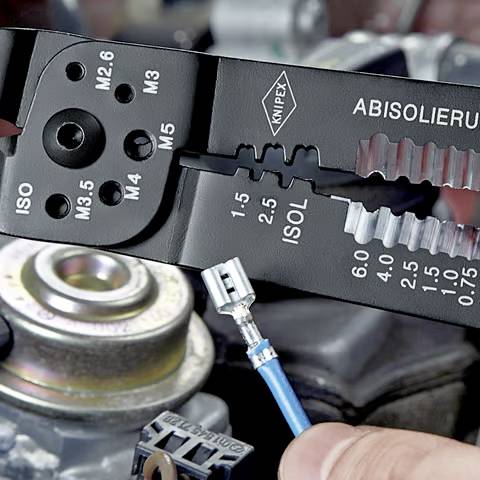

A hand uses a black wire stripper tool to strip a blue wire. The tool has various size markings for different wire gauges.

1/13

Datasheet (PDF)

176 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 19.32 / piece)

€

Report legal concerns

Highlights & Details

Crimping Pliers black lacquered with multi-component grips 240 mm

Cable cross-sections: 0.75 to 6 mm²
Strip: from 0.75 - 6.0 mm²
Shortening screws M 2.6 - M 5.
N/A

Technical specifications

Pliers: black lacquered
Handles: with multi-component grips
Capacity: 0,75 - 6,0 mm²
AWG: 18 - 10
Applications: insulated terminals and plug connectors
Number of crimping positions: 3
Length: 240 mm

Manufacturer part #: 97 22 240

Range of uses: Insulated cable lugs
Insulated connectors

Crimp area: 0.75 up to 6 mm²

Crimp area AWG: 10 up to 18 awg

Crimp area (min.): 0.75 mm²

Crimp area (max.): 6 mm²

Crimp area AWG (min.): 18 awg

Crimp area AWG (max.): 10 awg

Length: 240 mm

Material: Special steel

Material properties: burnished

Width: 240.0000 mm

Height: 62.0000 mm

Weight: 300 g

Suitable for: Cable cross-sections: 0.75 to 6 mm² · Strip: from 0.75 - 6.0 mm² · Shortening screws M 2.6 - M 5.

Type: 97 22 240

Product type: Crimper

Documents & Downloads

Datasheet

Datasheet 825480 Knipex 97 22 240 Crimper Insulated cable lugs, Insulated connectors 0.75 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 825480 Knipex 97 22 240 Crimper Insulated cable lugs, Insulated connectors 0.75 up to 6 mm²

Description

For cutting cables, stripping wire and crimping insulated and non-insulated terminals, connectors and plug type connectors
With threaded holes for cutting copper and brass screws threaded M 2.6 / M 3 / M 3.5 / M 4 and M 5

Special steel, high-strength

Features

For cuting cables, stripping of wires and crimping of insulated and non-insulated cable shoes and plug connectors and open plug connectors
With threaded holes for cutting Cu- or Ms-threaded pins with M 2.6; 3.0; 3.5; 4.0 and 5.0 mm
Special steel, high-strength.
