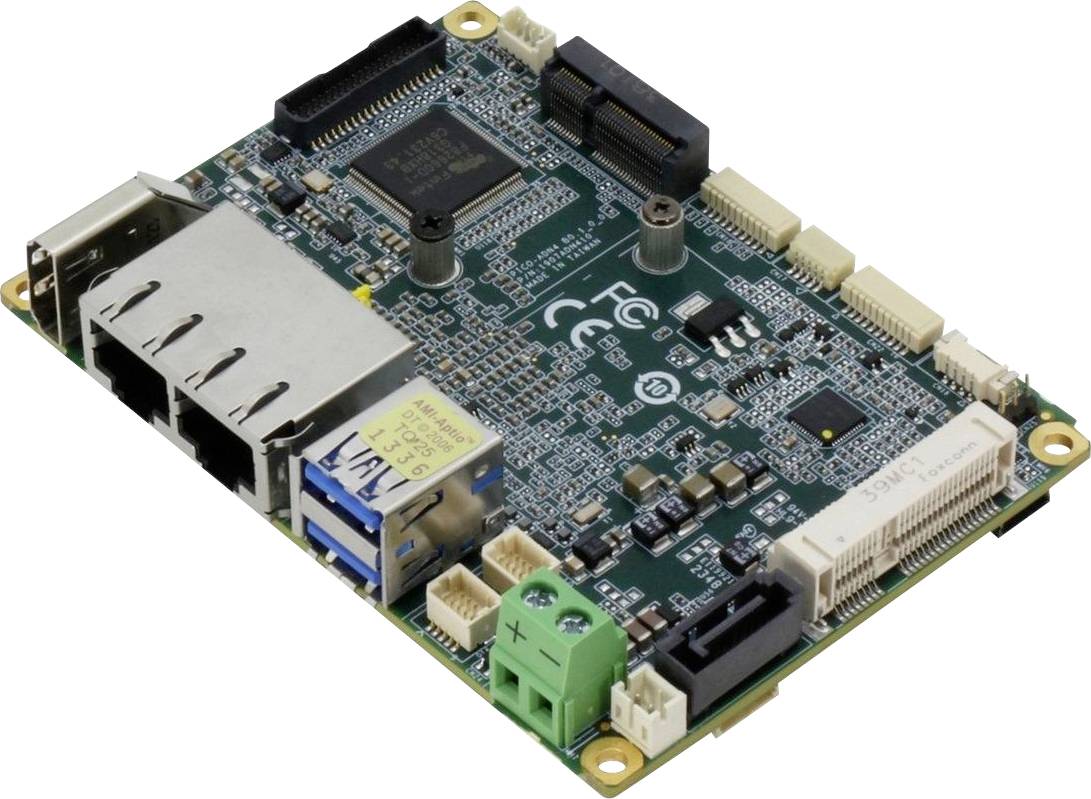

Aaeon PICO-TWL4-B10-0001 16 GB 4 x
Part number:
Item no:
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
14-day return policy included
Technical specifications
- Concurrent Displays: 2
- Other Features: DI/O x4, 4-pin FAN header
- Microarchitecture: Twin Lake
- Power Supply: Mating Connector: Terminal Block, 2-Pin
- Base Power (TDP): 6 W
- RAM: Slots: SODIMM (DDR5 4800 max. 16GB)
- Expansion Slots: M.2: 2230 E Key
- Expansion Slots: mPCIe: fullsize *1
- Storage: 2,5“ SSD Interface: SATA
- Storage: mSATA Slot: fullsize *1
- Display Interfaces: Int.: LVDS 18/24bit 2Ch
- Product type
SBC
- Processor cores (No.)
4 x
16 GB
- Internal ports
M.2
- External ports
Terminal block
- Engineering Series Name
PICO-TWL4 REV.B
- Cooling
Passive
- Operating voltage
12 V DC
- CPU turbo clock speed (max.)
3.6 GHz
- CPU
Intel Processor N150
- CPU speed
0.1 GHz
- Interfaces
2,5 GbE, GbE, USB 3.2 Gen 2x1 x2, USB 2.0 x4, RS-232/422/485 x2, RS-232 x2, SMBUS, , , , HDMI
- Max. temperature
60 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3639398 Aaeon PICO-TWL4-B10-0001 16 GB 4 x
User & Safety Instructions
User & Safety Instructions 3639398 Aaeon PICO-TWL4-B10-0001 16 GB 4 x
Description
PICO-TWL4-B10-0001 ;Pico-ITX, Intel Processor N150,-20...+70°C
