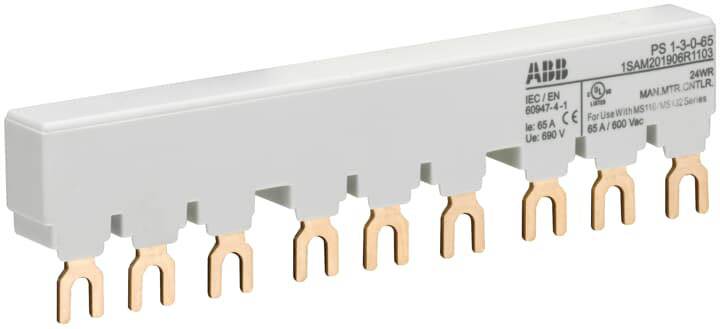

ABB 1SAM201906R1103 PS1-3-0-65 3-phase busbar for 3 MS116 / MS132, IE=65A Busbar Grey 10 mm² 65 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar
Operating voltage
690 V
Factory colour
Grey
Cross section
10 mm²
Nominal current
65 A
Datasheet (PDF)
Technical specifications
- Number of division units: 7.5
- Rated short-term current strength ICW: 100
- Rated surge voltage 6
- Suitable for number of devices: 3
- Suitable for devices with auxiliary switch: Yes
- Suitable for devices with N-conductor: No.
- Isolated: Yes
- Max. Rated operating voltage UE: 690
- Cross section: 10
- Division dimension: 14
- Conditional rated short-circuit current IQ: 100
- Rated continuous current IU: 65
- Electrical connection type: Fork
- Number of poles: 9
- Length: 131.5
- Number of phases: 3
- Product type
Busbar
- Operating voltage
690 V
- Factory colour
Grey
- Cross section
10 mm²
- Nominal current
65 A
- Nominal current - rounded value
65 A
- No. of partitions
7.5
- Content
1 pc(s)
- Length
131.5 mm
Grey
TRUE
3
65 A
9
135 m
100 kA
7.51
6 kV
Fork
100 kA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326432 ABB 1SAM201906R1103 PS1-3-0-65 3-phase busbar for 3 MS116 / MS132, IE=65A Busbar Grey 10 mm² 65 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2326432 ABB 1SAM201906R1103 PS1-3-0-65 3-phase busbar for 3 MS116 / MS132, IE=65A Busbar Grey 10 mm² 65 A 1 pc(s)
Description
PS1-3-0-65 3-phase busbar for 3 MS116 / MS132, IE=65A
