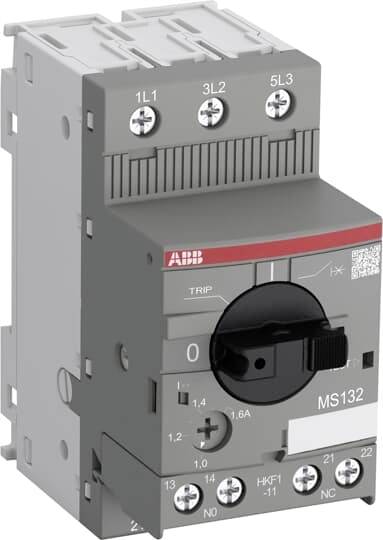

ABB 1SAM350005R1002 MS132-0.25-HKF1-11 Motor surge protector switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
Connection
Screws
IP rating
IP20
Length
86.75 mm
Width
45 mm
Datasheet (PDF)
Technical specifications
- Product type
Motor surge protector switch
- Connection
Screws
IP20
- Length
86.75 mm
- Width
45 mm
- Height
90 mm
- Content
1 pc(s)
- Type
MS132-0.25-HKF1-11
- Dim
(L x W x H) 86.75 x 45 x 90 mm
45
97.8 mm
86.5 mm
0.06 kW
TRUE
0.25 A
FALSE
3
230-690 V
0.16-0.25 A
IP20
TRUE
Screw connection
Turn button
Thermomagnetic
100 kA
3.1-3.1 A
TRUE
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3123574 ABB 1SAM350005R1002 MS132-0.25-HKF1-11 Motor surge protector switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3123574 ABB 1SAM350005R1002 MS132-0.25-HKF1-11 Motor surge protector switch 1 pc(s)
Description
MS132 motor circuit breaker with thermal and electromagnetic protection stands for the compact and powerful series with Hohem short-circuit breaking capacity for motor protection up to 15 kW (400 V) with a module width of 45 mm. The temperature-compensated device has a rotary handle control with a clear I/TRIP/0 switch position display. Moreover, MS132 also possesses a short-circuit display. The turning handle can be directly locked in 0 position using a padlock. Auxiliary, signal and short-circuit signaling contacts as well as under-voltage and working current releases can be fitted without the need for tools. MS132-HKF1-11 has a front mounted auxiliary switch with 1S/1Ö contacts. 3-phase rails for 65 A or for 100 A and feed blocks for 25 mm² or 35 mm² allow the common feed of several motor circuit breakers. Protective housing and accessories for installation in control cabinets and doors complete the range. ATEX certification permits the protection of motors in the hazardous area, UL approval as >self-protected combination motor cotroller
