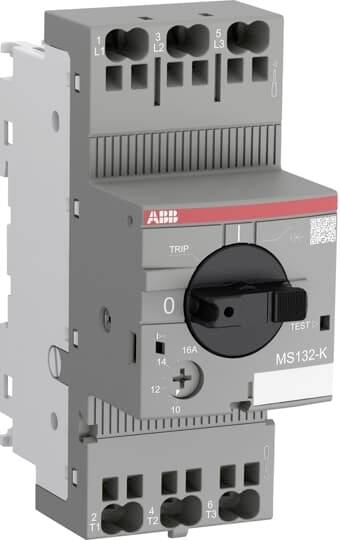

ABB 1SAM350010R1001 MS132-0.16K Motor surge protector switch 1 pc(s)

MS132...K motor circuit breakers in screw-less push-in spring-connection technology with thermal and electromagnetic protection stands for the compact and powerful series with Hohem short-circuit breaking capacity for motor protection up to 15 kW (400 V) with a module width of 45 mm. The temperature-compensated device has a rotary handle control with a clear I/TRIP/0 switch position display. Moreover, MS132...K has a short-circuit display. The turning handle can be directly locked in 0 position using a padlock. Auxiliary, signal and short-circuit signaling contacts as well as under-voltage and working current releases can be fitted without the need for tools. Push-in spring variants are available for auxiliary and signal contacts, these also fit the motor circuit breaker in screw technology. Direct adapters to protect the AF...K series allow the simple setup of compact starter combinations. Protective housing and accessories for installation in control cabinets and doors complete the range.
The Push-in spring connection terminals allow for rigid wires and stranded wires with wire end sleeves to be tool-free and time-saving insertion of the connection cables, strands without wire end sleeves can also be connected. Later adjustment of the connections is not necessary.
