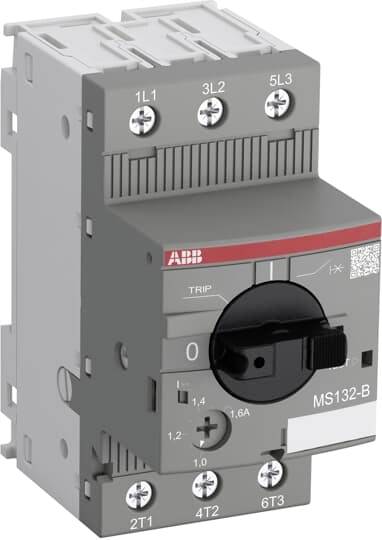

ABB 1SAM350200R1001 MS132-0.16B Motor surge protector switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
Connection
Screws
IP rating
IP20
Length
86.75 mm
Width
45 mm
Datasheet (PDF)
Technical specifications
- Product type
Motor surge protector switch
- Connection
Screws
IP20
- Length
86.75 mm
- Width
45 mm
- Height
90 mm
- Content
1 pc(s)
- Type
MS132-0.16B
- Dim
(L x W x H) 86.75 x 45 x 90 mm
45 mm
90 mm
86.75 mm
0.03 kW
FALSE
0.16 A
FALSE
3
250-690 V
0.1-0.16 A
IP20
TRUE
Screw connection
Turn button
Thermomagnetic
100 kA
2-2 A
TRUE
Complete device in housing
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3123577 ABB 1SAM350200R1001 MS132-0.16B Motor surge protector switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3123577 ABB 1SAM350200R1001 MS132-0.16B Motor surge protector switch 1 pc(s)
Description
MS132-B stands for the compact and powerful series in 45 mm width for motor protection up to 15 kW (400 V) in railway applications. The devices comply with current rail standards and are therefore suitable for installation in passenger areas and driver's cabs of trains, which frequently operate in tunnels and underground. They offer reliable protection in case of overload and short-circuit and have a separation function.
The operation is done via a strain relief with clear switch position indicator I/TRIP/0, additionally MS132-B also have a short-circuit display. The turning handle can be locked in 0 position using a padlock. Auxiliary, signal and short circuit contacts as well as undervoltage and working current releases can be installed without any tools, this accessory can also be used for MS165-B. 3-phase rails for 65 A or for 100 A and feed blocks for 25 mm² or 35 mm² allow the common feed of several motor circuit breakers. Protective housing and accessories for installation in control cabinets and doors complete the range.
MS132-B have release class 10, are temperature compensated and phase failure-sensitive. They meet the international rail standards IEC 60077 in the applicable parts, IEC 61373 (category 1, class B) for shock and vibration as well as the European safety standard EN 45545-2 for fire and smoke.
This text is machine translated.
The operation is done via a strain relief with clear switch position indicator I/TRIP/0, additionally MS132-B also have a short-circuit display. The turning handle can be locked in 0 position using a padlock. Auxiliary, signal and short circuit contacts as well as undervoltage and working current releases can be installed without any tools, this accessory can also be used for MS165-B. 3-phase rails for 65 A or for 100 A and feed blocks for 25 mm² or 35 mm² allow the common feed of several motor circuit breakers. Protective housing and accessories for installation in control cabinets and doors complete the range.
MS132-B have release class 10, are temperature compensated and phase failure-sensitive. They meet the international rail standards IEC 60077 in the applicable parts, IEC 61373 (category 1, class B) for shock and vibration as well as the European safety standard EN 45545-2 for fire and smoke.
This text is machine translated.
