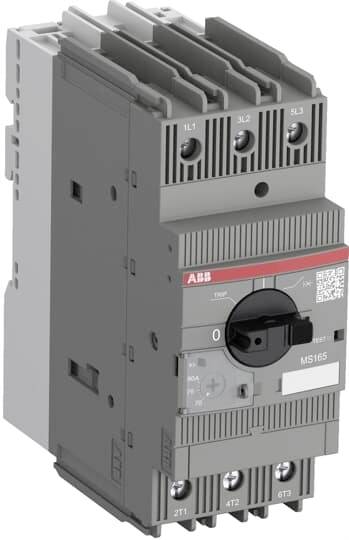

ABB 1SAM451000R1015 MS165-42 Motor surge protector switch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Motor surge protector switch
Connection
Screws
IP rating
IP20
Length
122.1 mm
Width
55 mm
Datasheet (PDF)
Technical specifications
- Product type
Motor surge protector switch
- Connection
Screws
IP20
- Length
122.1 mm
- Width
55 mm
- Height
142.65 mm
- Content
1 pc(s)
- Type
MS165-42
- Dim
(L x W x H) 122.1 x 55 x 142.65 mm
55
142.5 mm
122 mm
22 kW
FALSE
42 A
FALSE
3
230-690 V
30-42 A
IP20
TRUE
Screw connection
Turn button
Thermomagnetic
50 kA
630-630 A
TRUE
Built-in device fixed built-in technique
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3123636 ABB 1SAM451000R1015 MS165-42 Motor surge protector switch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3123636 ABB 1SAM451000R1015 MS165-42 Motor surge protector switch 1 pc(s)
Description
MS165 motor circuit-breaker with thermal and electromagnetic protection stands for the compact and powerful series with Hohem short-circuit breaking capacity for the motor protection up to 45 kW (400 V) with a module width of 55 mm. The temperature-compensated device has a rotary handle control with a clear I/TRIP/0 switch position display. In addition MS165 has a short-circuit display. The turning handle can be directly locked in 0 position using a padlock. Auxiliary, signal and short-circuit signaling contacts as well as under-voltage and working current releases can be fitted without the need for tools. 3-phase rails for 125 A allow the common feed of several motor protection switches. Accessories for installation in control cabinets supplements this range. ATEX certification permits the protection of motors in the hazardous area, UL approval as >self-protected combination motor cotroller
