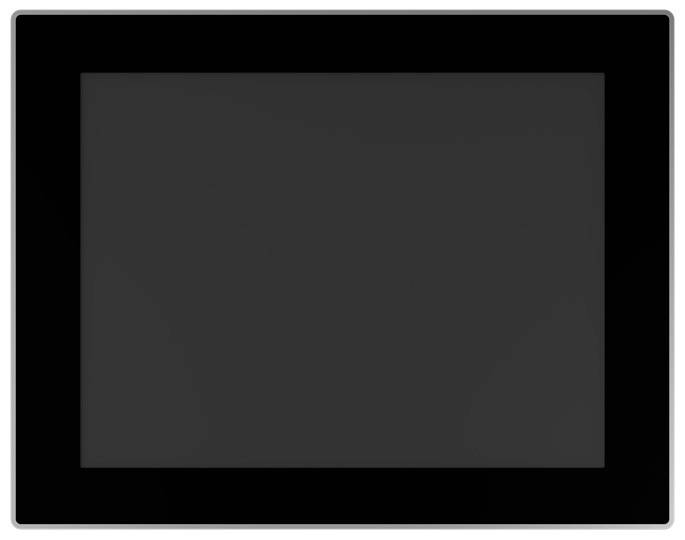

ABB 1SAP541510R0001 CP6415 PLC touch panel
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC touch panel
- Interfaces
2x Ethernet
2x USB
1 x serial
- Type
CP6415
- Min. operating voltage
18 V DC
- Memory size
150000 kB usable project memory/user memory
- Operating voltage
18 - 32 V DC
- Max. operating voltage
32 V DC
- Manufacturer part #
1SAP541510R0001
- Height
307 mm
- Width
392 mm
IP66
- Assembly dimensions
40 mm
- Dim
(W x H) 392 mm x 307 mm
- Content
1 pc(s)
- Display
Yes
- Max. ambient temperature
-20 °C
- Min. ambient temperature
60 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785338 ABB 1SAP541510R0001 CP6415 PLC touch panel
Description
The CP600 series is available with different screen sizes from 4.3" to 15". The devices are very flexible and especially intended for applications in complex systems or processes. With the easy-to-read flowcharts created using PB610 engineering software, the CP600 series provides a better information representation for easier interaction between man and machine. The panels are ideal for visualizing the states in and interacting with security networks, consisting of Pluto modules. Special versions are available for the food&beverage sector with IP69K, as well as economy variants.
