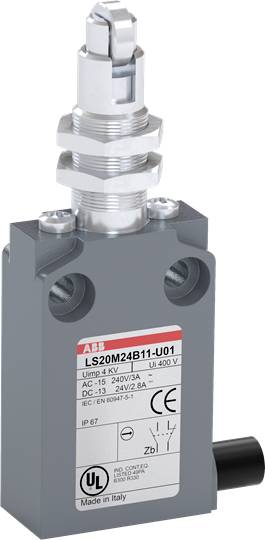

ABB 1SBV015524R2601 LS20M24B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Door-operated switch
- Connection
Open end cable
- Operation type
Tappet
- Switching current (max.)
10 A
- Contact type
1 maker
1 breaker
- Contact material
Zinc alloy
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Cable length
1 m
- Thread size
M4
- Material
Metal
- Width
30 mm
- Type
LS20M24B11-U01
- Content
1 pc(s)
- Dim
(L x W x H) 16 x 30 x 85 mm
- Height
85 mm
- Length
16 mm
- Depth
30 mm
Quick-break switch
3 A
0.27 A
Metal
FALSE
Powder coating
FALSE
None
With cable preassembled
None
None
Cuboid
IP67
FALSE
0
Plunger
None
FALSE
5.5 A
10 A
0.55 A
2.8 A
30 mm
0 mm
85 mm
16 mm
FALSE
-25-70 °C
1
1
0
Other
6
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099244 ABB 1SBV015524R2601 LS20M24B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3099244 ABB 1SBV015524R2601 LS20M24B11-U01 Door-operated switch 10 A Tappet IP67 1 pc(s)
Description
LS20M24B11-U01 is a 30 mm wide, compact position switch made of zinc alloy material (Zamak), with 2 mounting holes M4 on the top, a pre-wired UL62 PVC cable (1 m) on the side, a flattened steel roller pressure bolt and 1 NC + 1 NO on the spring contact
