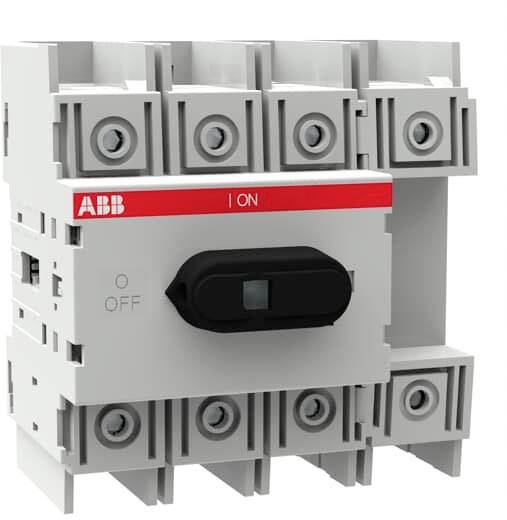

ABB 1SCA022429R9220 OT125M4 Circuit breaker 4-pin
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
4
Factory colour
Black
Content
1 pc(s)
Width
100
Datasheet (PDF)
Technical specifications
- Product type
Circuit breaker
- Number of pins
4
- Factory colour
Black
- Content
1 pc(s)
100
96.5 mm
74 mm
45 kW
0
0
125 A
4
750-750 V
IP20
0
FALSE
FALSE
Cable clamp
FALSE
Toggle
TRUE
FALSE
FALSE
45 kW
2.5 kA
Black
TRUE
FALSE
FALSE
TRUE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
125 A
45 kW
FALSE
90
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323518 ABB 1SCA022429R9220 OT125M4 Circuit breaker 4-pin
User & Safety Instructions
User & Safety Instructions 2323518 ABB 1SCA022429R9220 OT125M4 Circuit breaker 4-pin
Description
The manually operated OT series switch disconnectors are unique in their variety and flexibility. The OT series switches currents from 16 A to 4000 A and this at voltages of up to 1000 V AC. Despite their high power, the switches are very comfortable to use and require little space. Due to the freely selectable mounting position, a high flexibility and efficiency is possible during planning. In addition, the OT switches can be used as main or sub-distribution switches. Of course, the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also offers a wide range of accessories for these switches, such as Extension shafts, handles, auxiliary switches and terminal covers. This means that the OT switch disconnectors can be used in even the most demanding applications.
